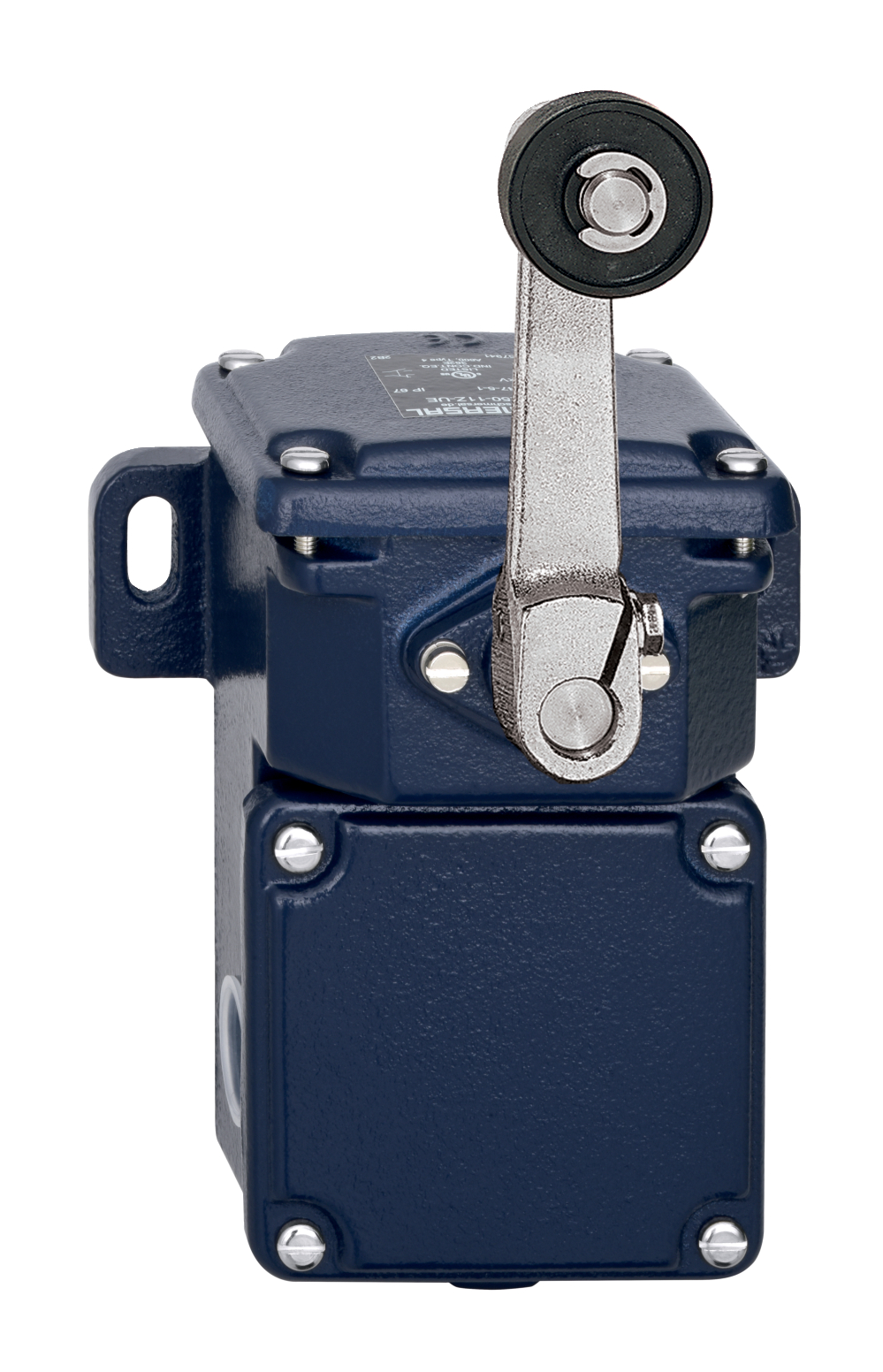

SCHMERSAL HEAVY-DUTY POSITION SWITCH TD 250-11/11Z-1276-2 101099842

Product Code: 101099842

Technical Specifications

Actuator Type Roller Lever
Enclosure Material Grey Cast Iron, Galvanised
Brand SCHMERSAL
Ambient Temperature Range (°C) -40 to 200
Contact Material Gold-plated Silver (AgNi 15 + Au 0,3µm)
Maximum Actuating Speed (m/s) 1
Maximum Impact Energy (J) 7
Maximum Switching Current (A) 4
Maximum Switching Voltage AC (V) 400
Minimum Mechanical Life 10,000,000 Operations
Rated Impulse Withstand Voltage (kV) 6
Rated Short-circuit Current (A) 1000
Switching Frequency 3000 /h
Switching Principle Slow Action
Switchover Time (ms) 35
Thermal Test Current (A) 16
Weight (kg) 4.342
Sensor Length (mm) 63
Sensor Width (mm) 106
Sensor Height (mm) 164
Degree of Protection IP65, IP66, IP67
