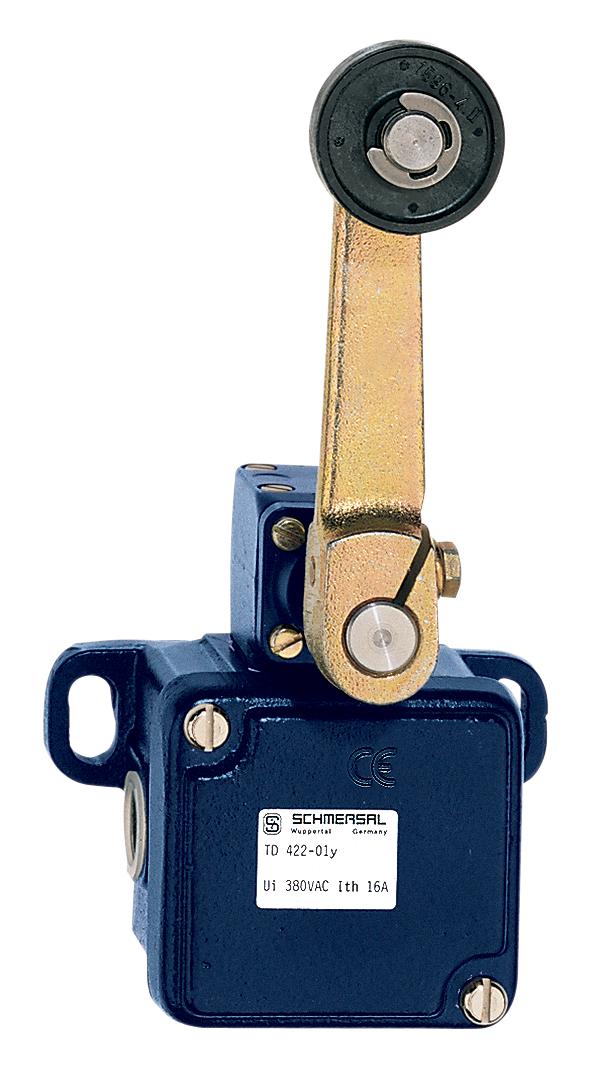

SCHMERSAL TD 422-01Y-2186-1POSITION SWITCH 101137865

Product Code: 101137865

Technical Specifications

Actuating Angle 30° - From Left of Switch Axis, 30° - From Right of Switch Axis
Actuating Element Roller Lever
Castor Diameter (mm) 36
Castor Material Plastic
Castor Width (mm) 9
Contact Material Silver
Contact Opening (mm) 2 x 6
Degree of Protection IP66
Enclosure Coating Material Painted
Housing Material Grey Cast Iron, Galvanised
Maximum Actuating Speed (m/s) 3
Maximum Ambient Temperature (°C) 90
Maximum Cable Cross Section (mm²) 2.5
Maximum Fuse Rating 16 A gG D-fuse
Minimum Actuating Speed (mm/min) 1
Minimum Ambient Temperature (°C) -30
Minimum Cable Cross Section (mm²) 1.5
Minimum Mechanical Life 10000000 Operations
No. of Normally-closed Contacts 1
Rated Insulation Voltage (V) 400
Rated Operational Current AC-15 (A) 4
Rated Operational Voltage AC-15 (V) 400V AC
Sensor Height (mm) 209
Sensor Length (mm) 63
Sensor Width (mm) 106
Standards and Approvals EN IEC 60947-5-1
Switching Element Opener (NC)
Switching Principle Slow Action
Termination Screw Terminals M20 x 1.5
Thermal Test Current (A) 16
Utilisation Category AC-15
