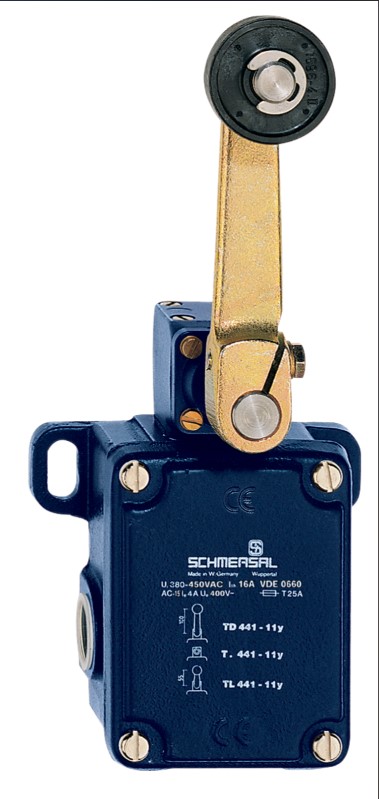

SCHMERSAL MEDIUM-DUTY POSITION SWITCH TD 441-11Y-T-1276-2 101092612

Product Code: 101092612

  • Metal enclosure Actuator head can be repositioned in steps 4 x 90° Continuous adjustment of lever position 360° 2 Contacts Lever can be transposed by 180° 106 mm x 99 mm x 63 mm (basic component) Protection class IP65
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Actuator Type Roller lever
Enclosure Material Grey Cast Iron, Galvanised
Ambient Temperature Range (°C) -40 °C to +200 °C
Contact Opening (mm) 2 x 2.5
Brand SCHMERSAL
Product Type Limit Switch
Actuating Angle 30 ° from Left of Switch Axis 30 ° from Right of Switch Axis
Contact Material Gold-plated Silver (AgNi 15 + Au 0,3µm)
Maximum Actuating Speed (m/s) 3
Maximum Switching Current (A) 4
Maximum Switching Voltage AC (V) 250
Minimum Actuating Speed (mm/min) 1
Minimum Mechanical Life 5,000,000 Operations
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage AC (V) 250
Switching Element NO Contact, NC Contact
Switching Principle Slow Action
Termination Screw Terminals M20 x 1.5
Thermal Test Current (A) 16
Sensor Length (mm) 63
Sensor Width (mm) 106
Sensor Height (mm) 192
Degree of Protection IP65
