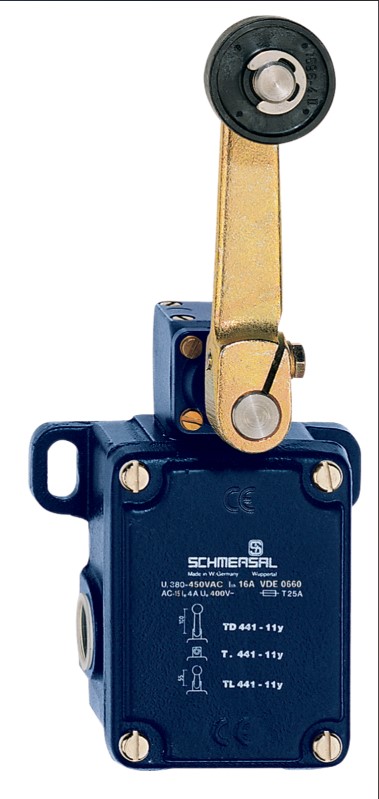

SCHMERSAL MEDIUM-DUTY POSITION SWITCH TD 452-02Y-RMS-1090 101105465

Product Code: 101105465

Technical Specifications

Actuating Angle 30 ° from Left of Switch Axis 30 ° from Right of Switch Axis
Contact Opening (mm) 2 x 2.5
Maximum Actuating Speed (m/s) 3
Minimum Actuating Speed (mm/min) 1
Sensor Height (mm) 192
Sensor Length (mm) 63
Sensor Width (mm) 106
Switching Element NO Contact, NC Contact
Switching Principle Slow Action
Termination Screw Terminals M20 x 1.5
Thermal Test Current (A) 16
Brand SCHMERSAL
Actuator Type Roller lever
Ambient Temperature Range (°C) -40 °C to +200 °C
Contact Material Silver
Degree of Protection IP65
Enclosure Material Grey Cast Iron, Galvanised
Maximum Switching Current (A) 4
Maximum Switching Voltage AC (V) 250
Minimum Mechanical Life 5,000,000 Operations
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage AC (V) 250
