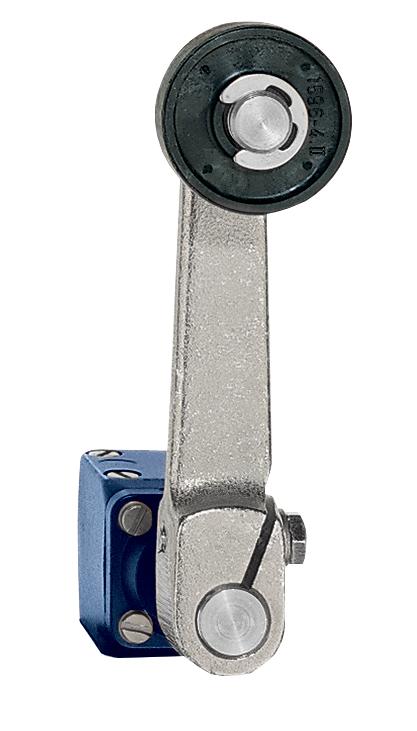

SCHMERSAL TD 452-21YMEDIUM-DUTY POSITION SWITCH 101059584

Product Code: 101059584

Technical Specifications

Housing Material Grey Cast Iron, Galvanised
Enclosure Coating Material Painted
Contact Opening (mm) 2 x 6
Castor Material Plastic
Minimum Ambient Temperature (°C) -30
Brand SCHMERSAL
Maximum Ambient Temperature (°C) 90
Maximum Cable Cross Section (mm²) 2.5
Minimum Cable Cross Section (mm²) 1.5
Actuating Angle 30° - From Left of Switch Axis, 30° - From Right of Switch Axis
Actuating Element Roller Lever
Contact Material Silver
Maximum Actuating Speed (m/s) 3
Maximum Fuse Rating 16 A gG D-fuse
Minimum Actuating Speed (mm/min) 1
Minimum Mechanical Life 10000000 Operations
No. of Normally-closed Contacts 1
No. of Normally-open Contacts 2
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 400
Rated Operational Current AC-15 (A) 4
Rated Operational Voltage AC-15 (V) 400V AC
Switching Element NO Contact, NC Contact
Switching Principle Slow Action
Termination Screw Terminals M20 x 1.5
Thermal Test Current (A) 16
Utilisation Category AC-15
Sensor Length (mm) 64
Sensor Width (mm) 118
Sensor Height (mm) 265
Castor Diameter (mm) 36
Castor Width (mm) 9
Degree of Protection IP65
Standards and Approvals EN IEC 60947-5-1
