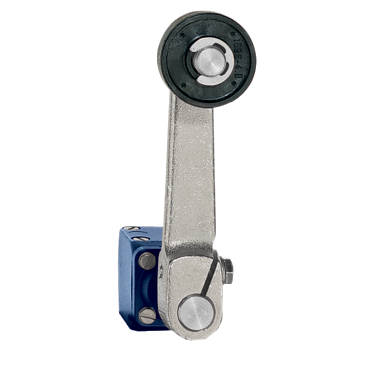

Schmersal 101059612 Position Switch 2NO-2NC Silver Contact

Product Code: 101059612

  • IP65 rated for dust and water resistance
  • Complies with CE, IEC/EN60947-5-1 standards
  • 2NO+2NC contact configuration
  • High actuating speed of 1 m/s
  • Durable silver contacts
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Position Switch
Brand SCHMERSAL
Actuating Speed 1 m/s
Contact Configuration 2NO+2NC
Contact Material Silver
Degree of Protection IP65
Mechanical Life 5000000 Operations
Rated Frequency 3000 Hz
Standards and Approvals CE, IEC/EN60947-5-1
Terminal Type Screw
