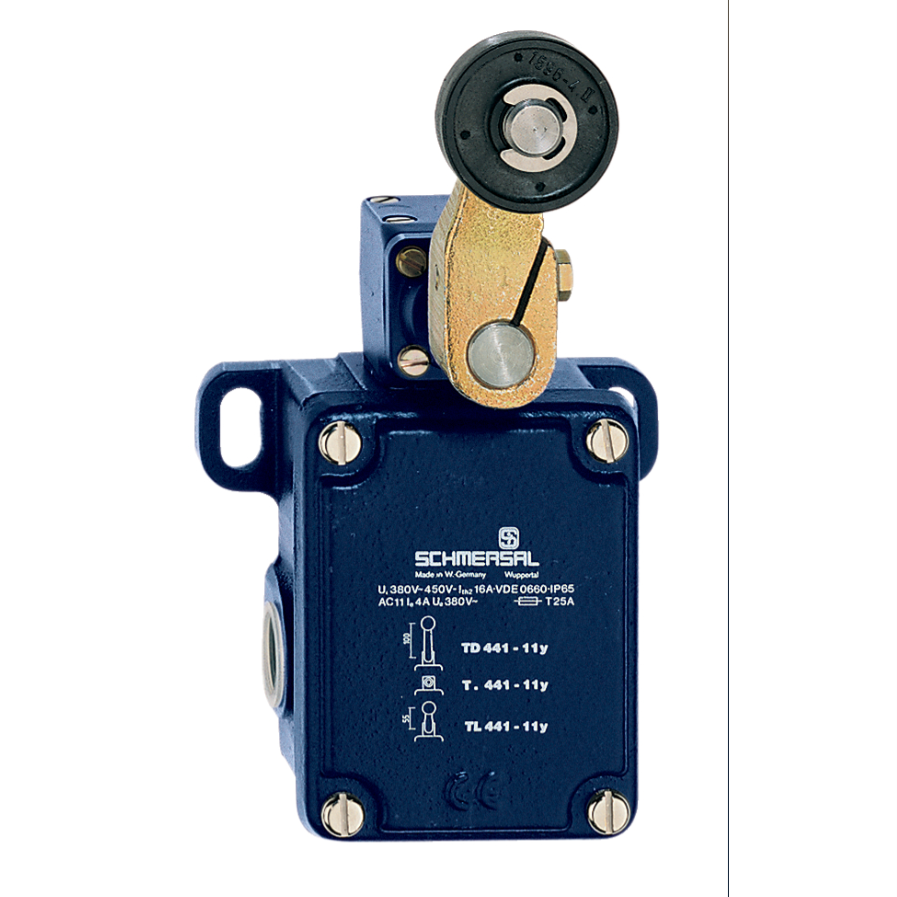

Schmersal 101195113 Position Switch Offset Roller Lever NO-NC Grey Cast Iron Galvanised

Product Code: 101195113

  • Rated current of 16 A
  • Durable grey cast iron housing
  • High protection level IP65
  • Offset roller lever actuator
  • Mechanical life: 10 million ops
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Position Switch
Brand SCHMERSAL
Actuating Speed 1 mm/min
Actuator Type Offset Roller Lever
Contact Configuration NO+1NC
Contact Material AgSn0
Contact Opening (2) 6 mm
Degree of Protection IP65
Housing Material Grey Cast Iron, Galvanised
Mechanical Life 10000000 Operations
Number of Auxiliary Contacts 1
Rated Current 16 A
Standards and Approvals INMETRO, CCC
Switching Type Mechanical
Terminal Type M20 x 1.5 Screw
