Actuating Angle	30 ° from Left of Switch Axis 30 ° from Right of Switch Axis
Contact Opening (mm)	2 x 6
Maximum Actuating Speed (m/s)	3
Minimum Actuating Speed (mm/min)	1
Roller Material	Plastic
Sensor Height (mm)	164
Sensor Length (mm)	63
Sensor Width (mm)	106
Switching Element	Normally Open Contact (NO)
Switching Principle	Slow Action
Thermal Test Current (A)	16
Brand	SCHMERSAL
Actuator Type	Roller lever
Ambient Temperature Range (°C)	-30 °C to + 90 °C
Contact Material	Silver
Degree of Protection	IP65
Enclosure Material	Grey Cast Iron, Galvanised
Maximum Switching Current (A)	4
Maximum Switching Voltage AC (V)	400
Minimum Mechanical Life	10,000,000 Operations
Mounting Type	Central with Threated Flange
Rated Insulation Voltage (V)	400

Position Switches & Sensors

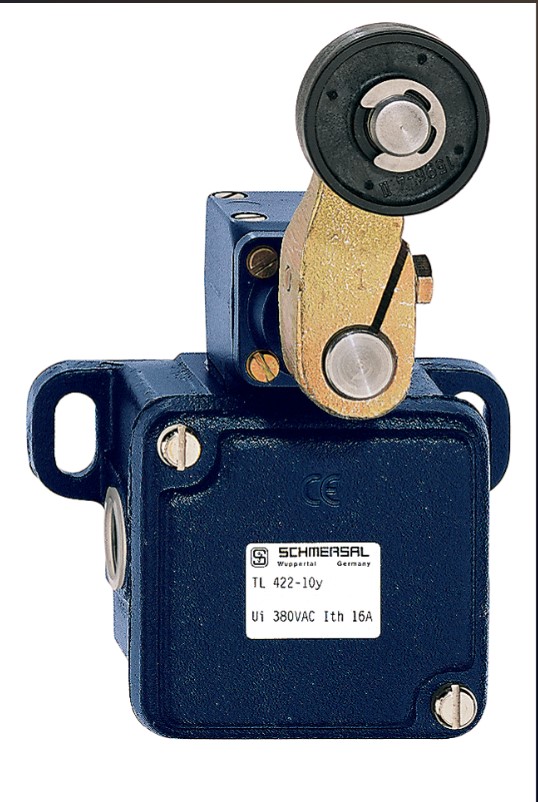

SCHMERSAL MEDIUM-DUTY POSITION SWITCH TL 422-10Y-U270-1785 101094076
