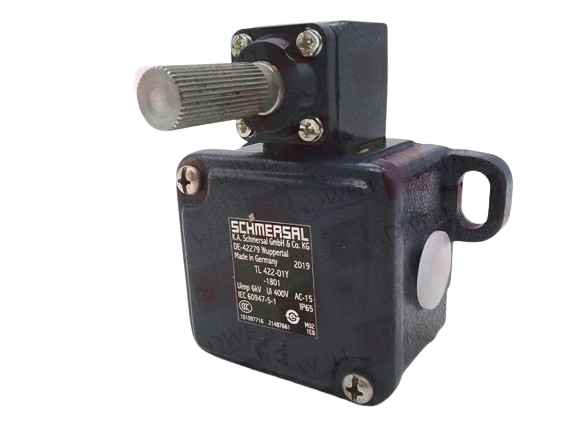

SCHMERSAL MEDIUM-DUTY POSITION SWITCH TL 422-01Y-1801 101097716

Product Code: 101097716

Technical Specifications

Actuator Type Roller lever
Enclosure Material Grey Cast Iron, Galvanised
Roller Material Plastic
Contact Opening (mm) 2 x 6
Brand SCHMERSAL
Ambient Temperature Range (°C) -30 °C to + 90 °C
Actuating Angle 30 ° from Left of Switch Axis 30 ° from Right of Switch Axis
Contact Material Silver
Maximum Actuating Speed (m/s) 3
Maximum Switching Current (A) 4
Maximum Switching Voltage AC (V) 400
Minimum Actuating Speed (mm/min) 1
Minimum Mechanical Life 10,000,000 Operations
Rated Insulation Voltage (V) 400
Switching Element Opener (NC) with Double Break
Switching Principle Slow Action
Thermal Test Current (A) 16
Sensor Length (mm) 63
Sensor Width (mm) 106
Sensor Height (mm) 164
Degree of Protection IP65
