Actuator Type	Roller lever
Enclosure Material	Grey Cast Iron, Galvanised
Roller Material	Plastic
Contact Opening (mm)	2 x 2.5
Brand	SCHMERSAL
Ambient Temperature Range (°C)	-40 °C to + 200 °C
Contact Material	Silver
Maximum Actuating Speed (m/s)	3
Maximum Switching Current (A)	4
Maximum Switching Voltage AC (V)	400
Minimum Actuating Speed (mm/min)	1
Minimum Mechanical Life	10,000,000 Operations
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	400
Switching Element	NO Contact, NC Contact
Switching Principle	Slow Action
Thermal Test Current (A)	16
Weight (kg)	1.76
Sensor Length (mm)	63
Sensor Width (mm)	106
Sensor Height (mm)	192
Degree of Protection	IP65

Position Switches & Sensors

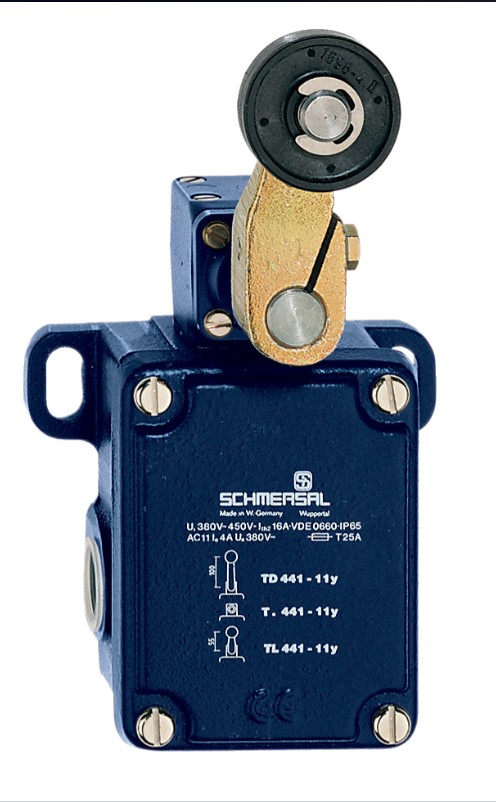

SCHMERSAL MEDIUM-DUTY POSITION SWITCH TL 441-11Y-1801 101105045
