Brand	SCHMERSAL
Actuating Angle	30° - From Left of Switch Axis, 30° - From Right of Switch Axis
Actuating Element	Roller Lever
Castor Diameter (mm)	36
Castor Material	Plastic
Castor Width (mm)	9
Contact Opening (mm)	2 x 6
Maximum Actuating Speed (m/s)	3
Maximum Fuse Rating	16 A gG D-fuse
Minimum Actuating Speed (mm/min)	1
Minimum Ambient Temperature (°C)	-30
Rated Operational Current AC-15 (A)	4
Rated Operational Voltage AC-15 (V)	400V AC
Sensor Height (mm)	220
Sensor Length (mm)	64
Sensor Width (mm)	118
Switching Element	Opener (NC)
Switching Principle	Slow Action
Termination	Screw Terminals M20 x 1.5
Thermal Test Current (A)	16
Utilisation Category	AC-15
Contact Material	Silver
Degree of Protection	IP65
Enclosure Coating Material	Painted
Housing Material	Grey Cast Iron, Galvanised
Maximum Ambient Temperature (°C)	90
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	1.5
Minimum Mechanical Life	10000000 Operations
No. of Normally-closed Contacts	2
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	400
Standards and Approvals	EN IEC 60947-5-1

Position Switches & Sensors

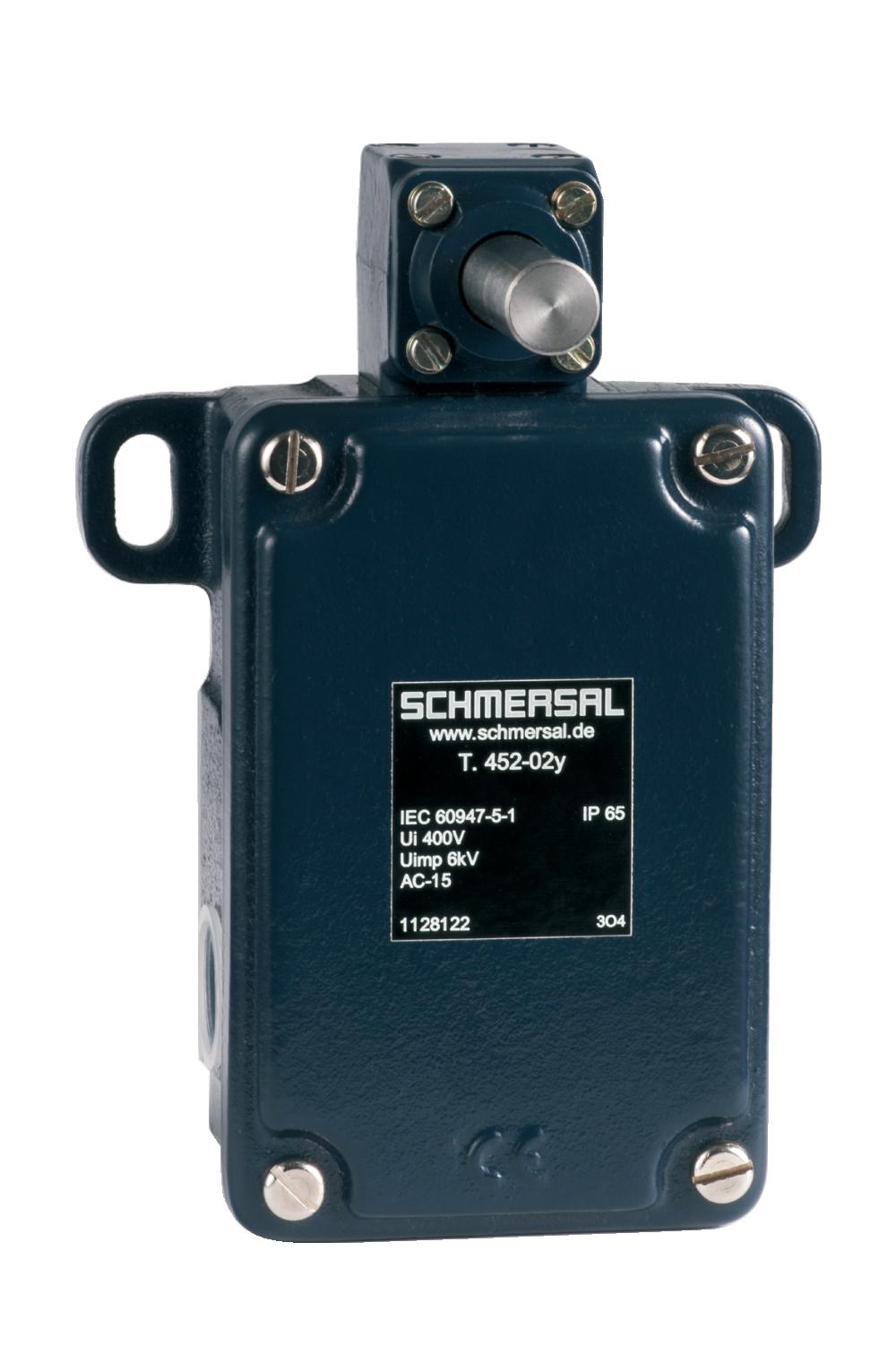

SCHMERSAL TL 452-02YMEDIUM-DUTY POSITION SWITCH 101059396
