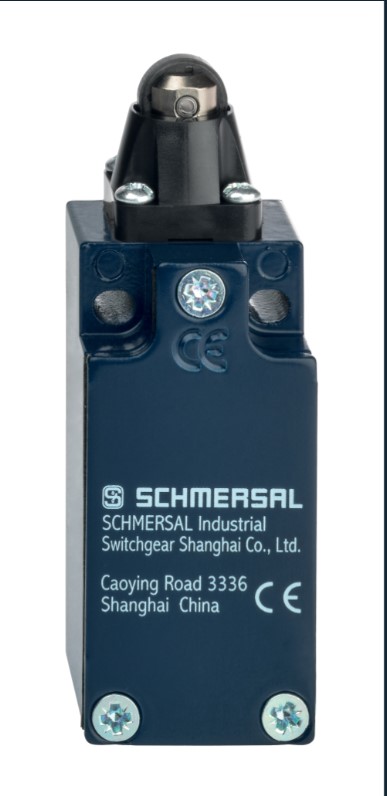

SCHMERSAL TR 236-11Z-U90-1772 POSITION SWITCH 101105011

Product Code: 101105011

Technical Specifications

Actuator Type Roller Plunger
Enclosure Material Plastic, Glass-fibre-reinforced
Brand SCHMERSAL
Ambient Temperature Range (°C) -30 °C to + 80 °C
Contact Material Gold-plated Silver (AgNi 15 + Au 0,3µm)
Contacts 1 NO Contact 1 NC Contact
Maximum Actuating Speed (m/s) 1
Maximum Switching Current (A) 4
Maximum Switching Voltage AC (V) 240
Maximum Switching Voltage DC (V) 24
Minimum Mechanical Life 20,000,000 Operations
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 500
Switching Frequency 5000 /h
Termination Screw Terminals M20 x 1.5
Thermal Test Current (A) 10
Tightening Torque (Nm) 1.2
Weight (kg) 0.059
Sensor Length (mm) 30
Sensor Width (mm) 30
Sensor Height (mm) 84
Degree of Protection IP65, IP67
