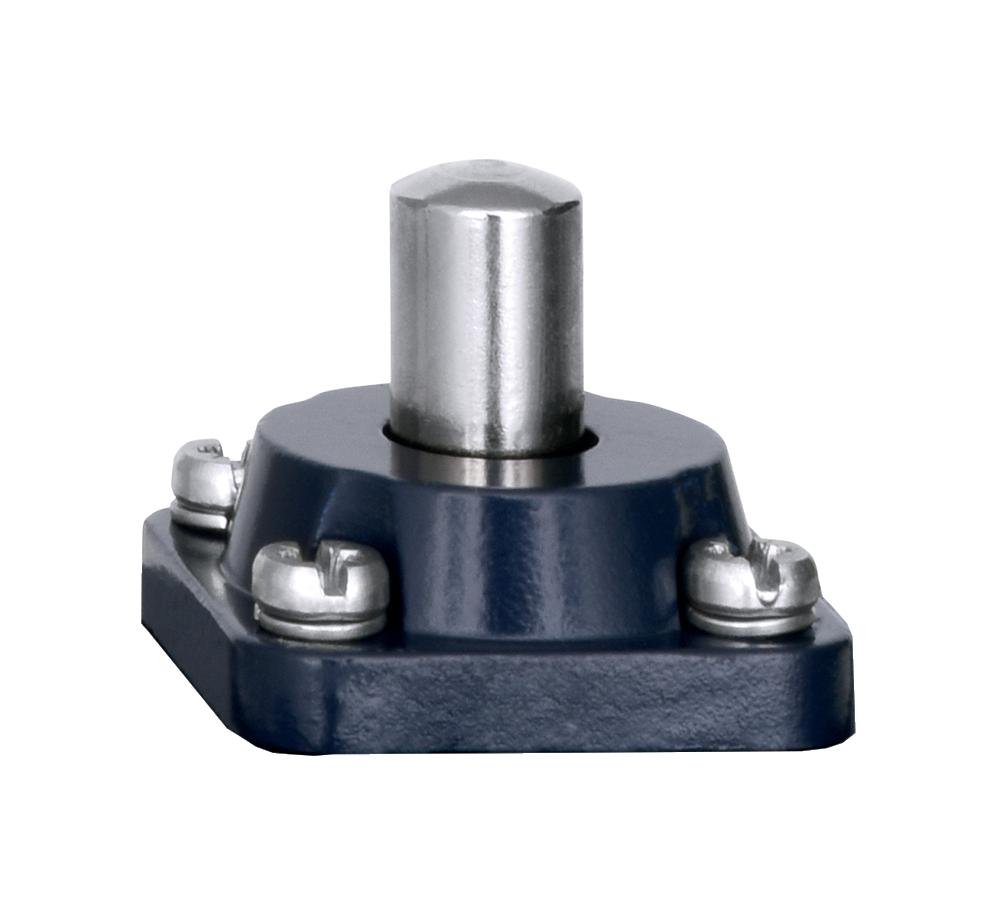

SCHMERSAL TS 452-02YPOSITION SWITCH 101058404

Product Code: 101058404

Technical Specifications

Brand SCHMERSAL
Actuating Angle 20°
Actuating Element Plunger
Contact Material Silver
Degree of Protection IP65
Enclosure Coating Material Painted
Housing Material Grey Cast Iron, Galvanised
Maximum Actuating Speed (m/s) 1
Maximum Ambient Temperature (°C) 90
Maximum Fuse Rating 16 A gG D-fuse
Minimum Actuating Speed (mm/min) 1
Minimum Ambient Temperature (°C) -30
Plunger Diameter (mm) 10
Sensor Height (mm) 153
Sensor Length (mm) 64
Sensor Width (mm) 118
Standards and Approvals EN IEC 60947-5-1
Thermal Test Current (A) 16
