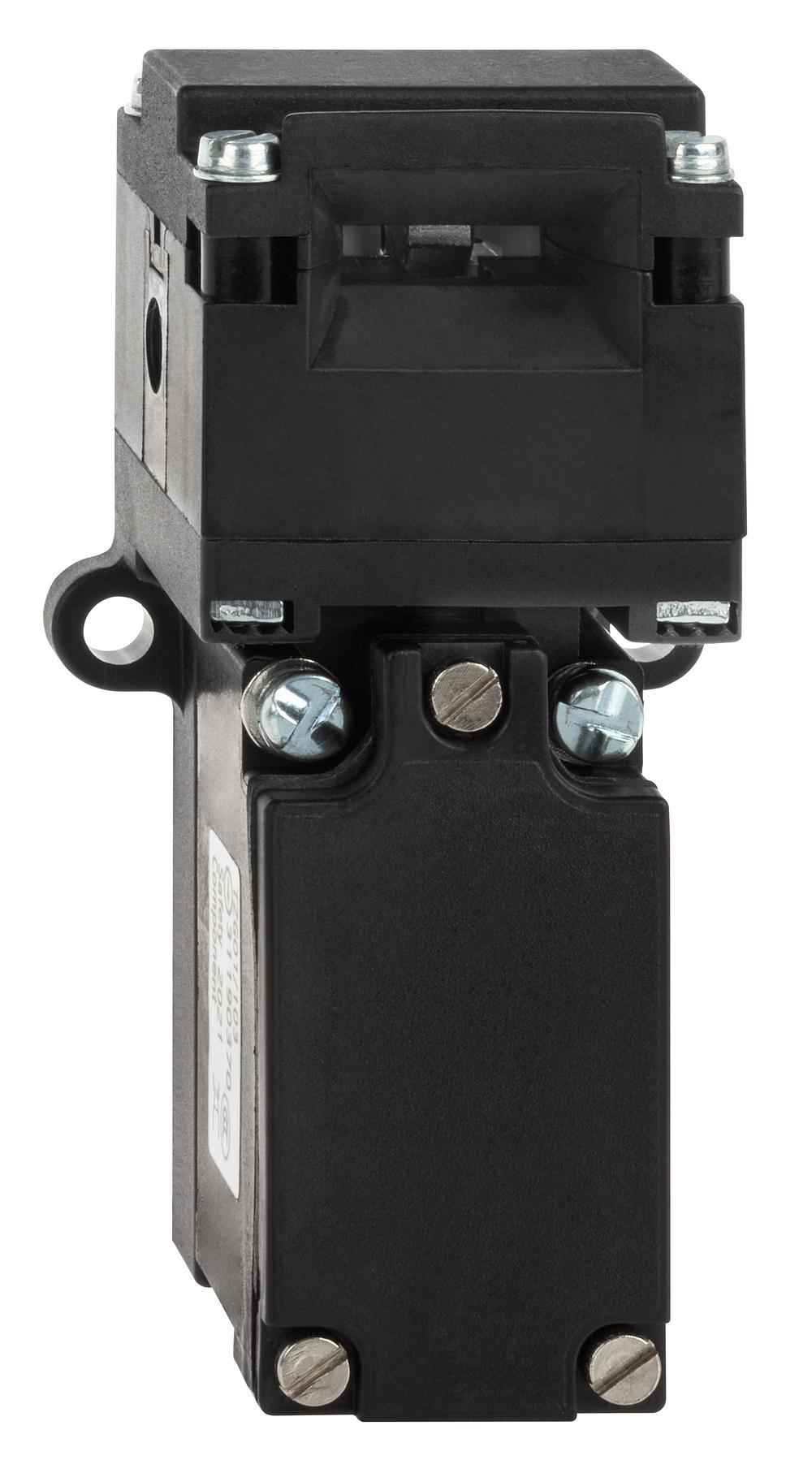

SCHMERSAL TZG01/103SOLENOID INTERLOCK 101017337

Product Code: 101017337

Technical Specifications

Brand SCHMERSAL
Contact Material Silver
Degree of Protection IP67
Height (mm) 106.5
Housing Material Glass-fibre, Reinforced Thermoplastic
Length (mm) 39.5
Maximum Actuating Speed (m/s) 0.2
Maximum Ambient Temperature (°C) 70
Maximum Cable Cross Section (mm²) 1.5
Maximum Fuse Rating 10 A gG D-fuse
Minimum Ambient Temperature (°C) -25
Minimum Cable Cross Section (mm²) 0.5
Minimum Mechanical Life 1000000 Operations
No. of Auxiliary Contacts 1
No. of Safety Contacts 1
Rated Impulse Withstand Voltage (kV) 2.5
Rated Insulation Voltage (V) 400
Rated Operational Current AC-15 (A) 8
Rated Operational Current DC-13 (A) 5
Rated Operational Voltage AC-15 (V) 230V AC
Rated Operational Voltage DC-13 (V) 24V DC
Sensor Height (mm) 39.5
Sensor Width (mm) 50
Standards and Approvals EN ISO 13849-1
Switching Element NC Contact, NO Contact
Switching Principle Slow Action
Termination Screw Terminals
Thermal Test Current (A) 10
Utilisation Category DC-13
Width (mm) 50
