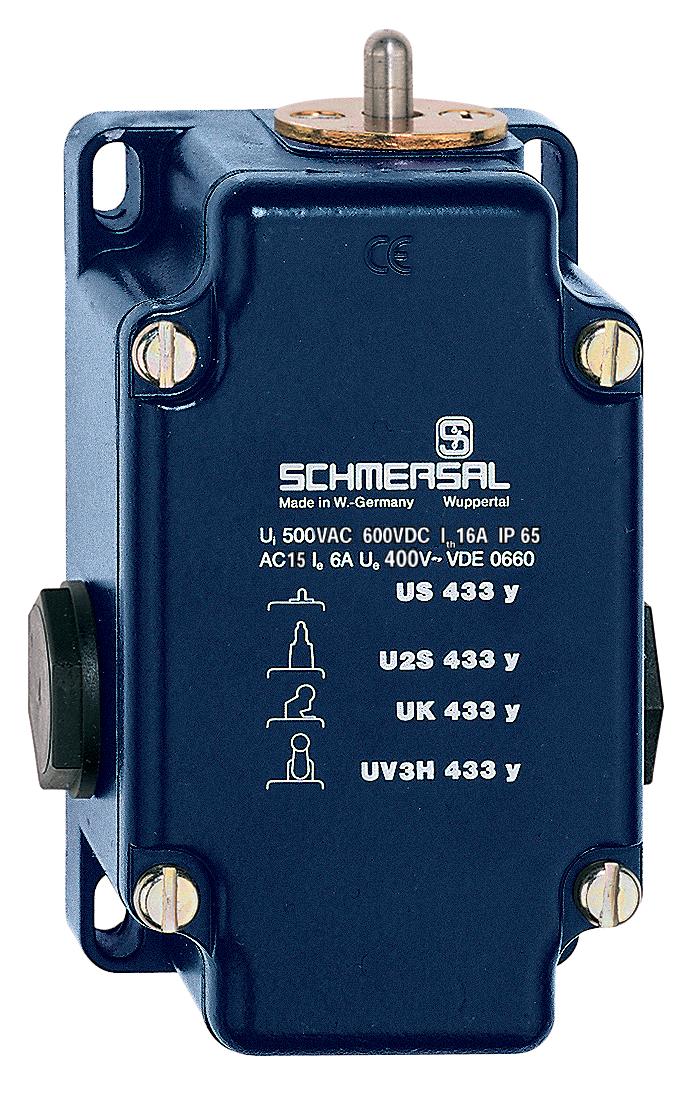

SCHMERSAL US 433YPOSITION SWITCH 101055008

Product Code: 101055008

Technical Specifications

Brand SCHMERSAL
back2archive 1
Actuating Angle 20°
Actuating Element Plunger
Contact Material Silver
Contact Opening (mm) 2 x 1.5
Degree of Protection IP65
Enclosure Coating Material Painted
Housing Material Light Alloy Die-casting
Maximum Actuating Speed (m/s) 1
Maximum Ambient Temperature (°C) 60
Maximum Cable Cross Section (mm²) 2.5
Maximum Fuse Rating 16 A gG D-fuse
Minimum Actuating Speed (mm/min) 1
Minimum Ambient Temperature (°C) -20
Minimum Cable Cross Section (mm²) 1.5
Minimum Mechanical Life 10000000 Operations
No. of Normally-closed Contacts 3
Plunger Diameter (mm) 6
Rated Insulation Voltage (V) 500
Sensor Height (mm) 116
Sensor Length (mm) 50
Sensor Width (mm) 62
Standards and Approvals EN IEC 60947-5-1
Switching Element Opener (NC)
Switching Principle Slow Action
Termination Screw Terminals M20 x 1.5
Thermal Test Current (A) 16
