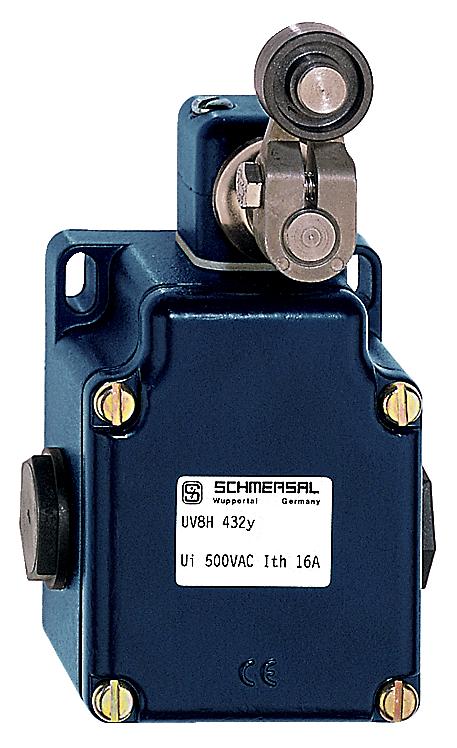

SCHMERSAL UV8H 432YPOSITION SWITCH 101060548

Product Code: 101060548

Technical Specifications

Housing Material Light Alloy Die-casting
Enclosure Coating Material Painted
Contact Opening (mm) 2 x 1.5
Castor Material Plastic
Minimum Ambient Temperature (°C) -20
Brand SCHMERSAL
Maximum Ambient Temperature (°C) 60
Maximum Cable Cross Section (mm²) 2.5
Minimum Cable Cross Section (mm²) 1.5
Actuating Angle 30° - From Left of Switch Axis, 30° - From Right of Switch Axis
Actuating Element Roller Lever
Contact Material Silver
Maximum Actuating Speed (m/s) 3
Maximum Fuse Rating 16 A gG D-fuse
Minimum Actuating Speed (mm/min) 1
Minimum Mechanical Life 10000000 Operations
No. of Normally-closed Contacts 2
Rated Insulation Voltage (V) 500
Switching Element Opener (NC)
Switching Principle Slow Action
Termination Screw Terminals M20 x 1.5
Thermal Test Current (A) 16
Sensor Length (mm) 50
Sensor Width (mm) 62
Sensor Height (mm) 131
Castor Diameter (mm) 20
Castor Width (mm) 8.5
Degree of Protection IP65
Standards and Approvals EN IEC 60947-5-1
