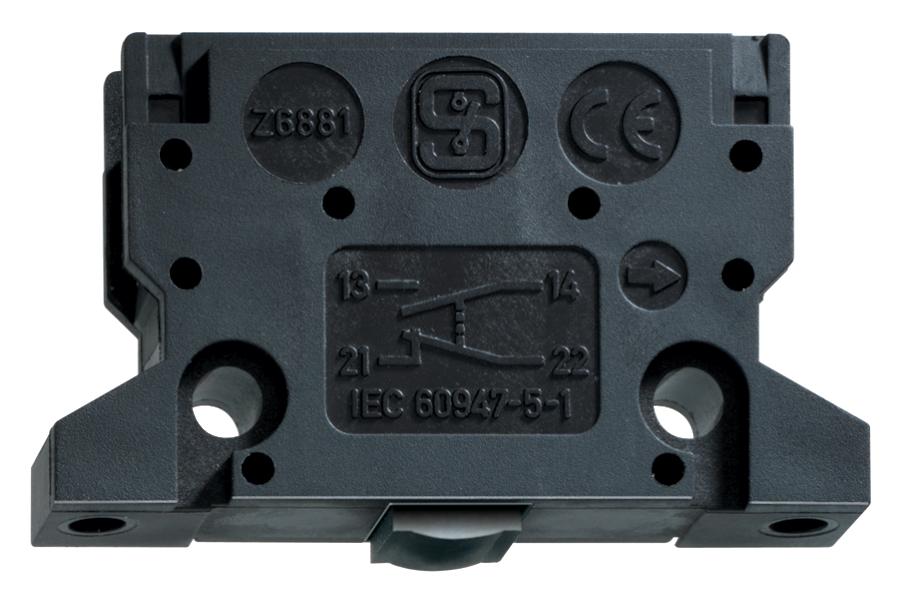

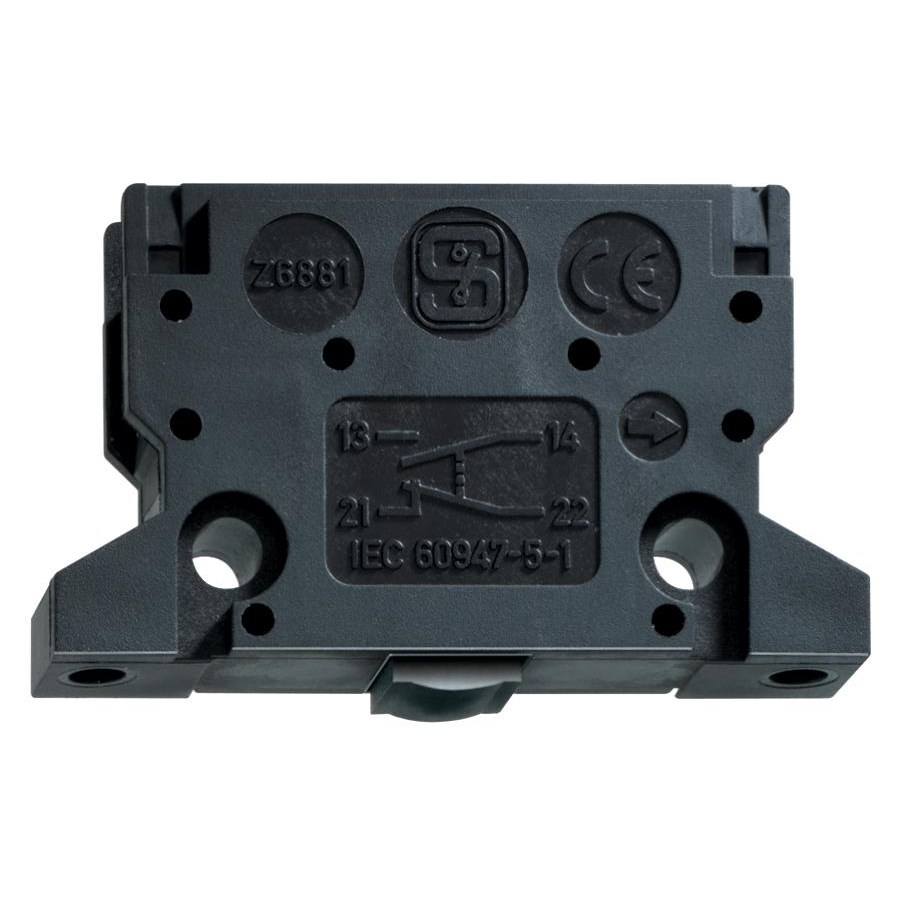

SCHMERSAL MICRO SWITCH 101138617

Product Code: 101138617

Technical Specifications

Brand SCHMERSAL
Actuator Type Magnet
Cable Note All indications including the conductor ferrules.
Coding Level According to EN ISO 14119 Low
Contact Material Silver
Degree of Protection IP65
EAN 4030660000000
eCl@ss Number, Version 11.0 27-27-06-01
eCl@ss Number, Version 9.0 27-37-12-12
Enclosure Coating Material Painted
Enclosure Material Brass
ETIM 6.0 EC000030
ETIM 7.0 EC002593
Gross Weight (g) 30
Height (mm) 100
Housing Construction Form Norm construction design
Maximum Actuating Speed (m/s) 1
Maximum Ambient Temperature (°C) 70
Maximum Cable Cross Section (mm²) 2.5
Maximum Fuse Rating 6 A gG D-fuse
Minimum Actuating Speed (mm/min) 60
Minimum Ambient Temperature (°C) -30
Minimum Cable Cross Section (mm²) 0.5
Minimum Mechanical Life 1000000 Operations
Minimum Positive Break Force (N) 16
Mounting Type 2 x M5, Cylinder head screw
Net Weight (g) 40
No. of Auxiliary Contacts 4
No. of Safety Contacts 2
Overvoltage Category 3
Pollution Degree 3
Protection Class of Operating Resource 3
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 500
Rated Short-circuit Current (A) 1000
Resistance to Shock (g/ms) 30 / 11
Sensor Height (mm) 25
Sensor Length (mm) 30
Standards EN IEC 60947-5-1 / EN 620
Storage Temperature (°C) 25 to 85
Switching Element Normally open contact (NO)
Switching Principle Snap action
Terminal Type Cable
Utilisation Category DC-13 | AC-15
Wire Cross-Section 13 AWG
Working Principle Electromechanical
