Specifications

Standards	EN ISO 13849-1 / EN IEC 60947-5-1 / BG-GS-ET-15
eCl@ss Number, Version 9.0	27-27-26-01
ETIM 7.0	EC000030
ETIM 6.0	EC000030
eCl@ss Number, Version 11.0	27-27-26-01

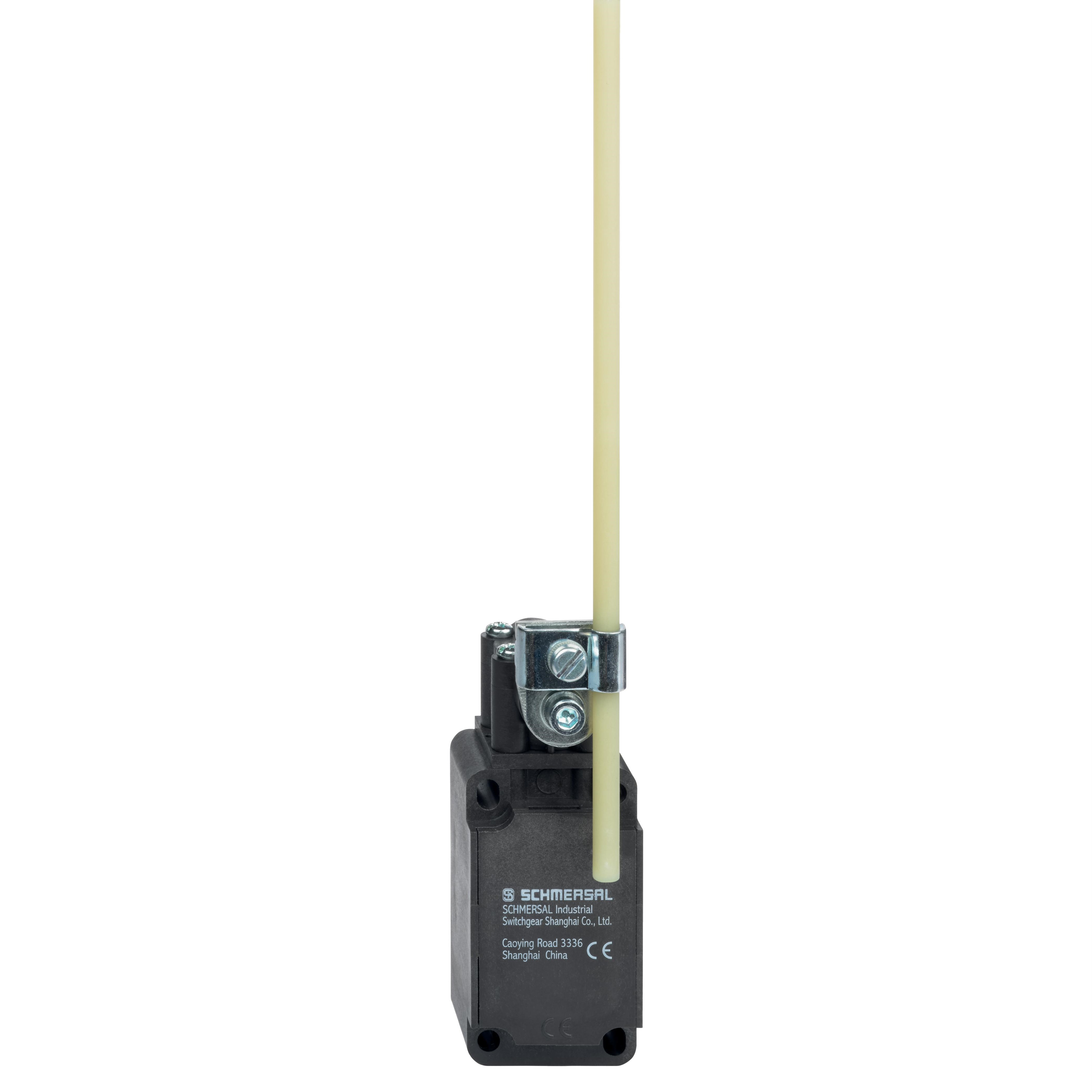

Product Type	Position Switch with Safety Function
Brand	SCHMERSAL
Action	Snap Action
Actuating Element	Rod Lever
Actuating Speed	2.5 m/s
Contact Configuration	NC
Contact Material	Silver
Degree of Protection	IP65, IP67
Housing Material	Plastic, Glass Fibre Reinforced Thermoplastic
Operational Temperature	-30 to 80 deg C
Rated Current	4 A
Rated Frequency	5000/h
Rated Insulation Voltage	500 V
Rated Voltage	230 VAC
Sensor Size	52 mm L x 40.5 mm W x 111.5 mm H
Standards and Approvals	BG-GS-ET-15, EN IEC 60947-5-1, EN ISO 13849-1
Weight	167 g
