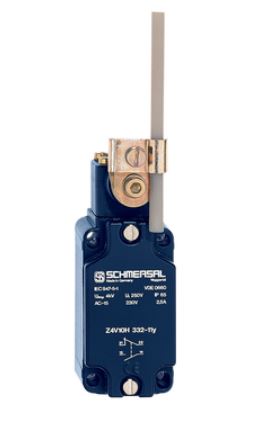

SCHMERSAL Z4V10H-336-11Z-NPT POSITION SWITCH 101094153
Zoom
SCHMERSAL Z4V10H-336-11Z-NPT POSITION SWITCH 101094153
Product Code: 101094153
Technical Specifications
Maximum Switching Voltage DC (V)
24
Switching Frequency
5000 /h
Termination
Screw Terminals M20 x 1.5
Thermal Test Current (A)
10
Brand
SCHMERSAL
Ambient Temperature Range (°C)
-30 °C to +80 °C
Contacts
1 NO Contact 1 NC Contact
Degree of Protection
IP67
Maximum Switching Current (A)
4
Maximum Switching Voltage AC (V)
230
Minimum Mechanical Life
30,000,000 Operations
Rated Impulse Withstand Voltage (kV)
6
Tightening Torque (Nm)
1.2
Weight (kg)
0.16
Documents
Datasheet
IPD Product Catalogue V17
