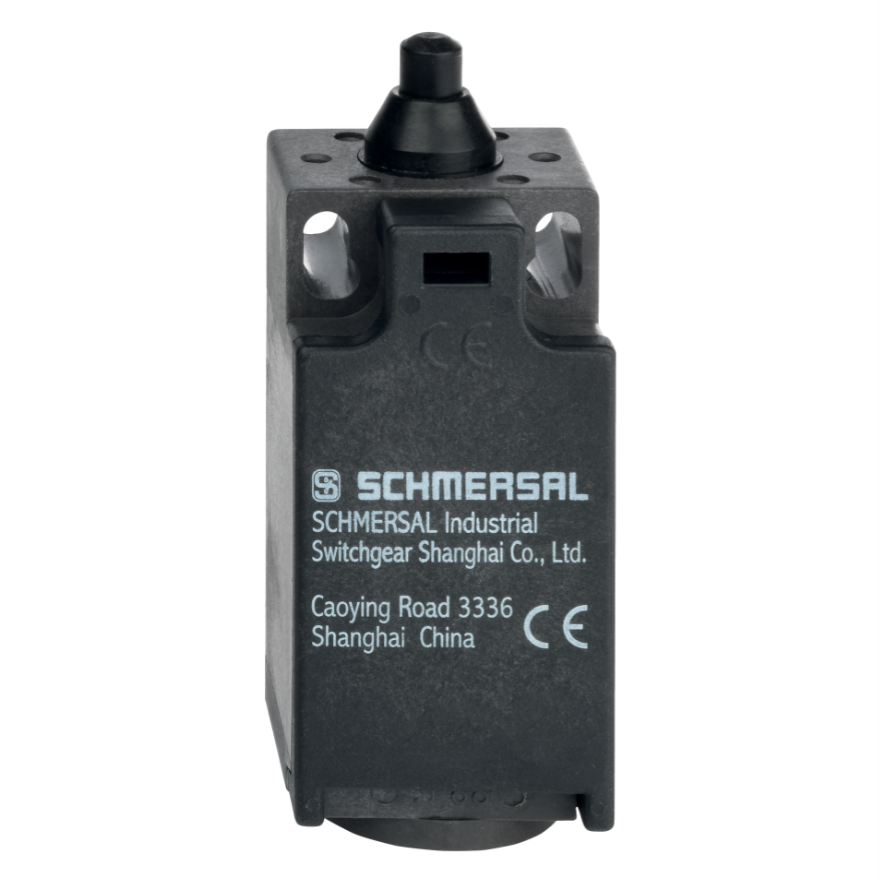

Schmersal 101168172 Position Switch w/Safety Function Plunger 1NO-1NC Plastic Glass Fibre Reinforced Thermoplastic

Product Code: 101168172

  • Durable plastic & glass fibre reinforced housing
  • High protection with IP67/IP65 ratings
  • Complies with multiple international standards
  • Snap action switching for quick response
  • Long mechanical life of 20 million operations
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Ambient Temperature Range (°C) -30 to 80
Sensor Length (mm) 30
Sensor Width (mm) 30
Sensor Height (mm) 73.5
Minimum Mechanical Life 20,000,000
Gross Weight (g) 50
Product Type Position Switch with Safety Function
Brand SCHMERSAL
Actuating Element Plunger
Actuating Speed 1 m/s
Actuator Type Plunger
Cable Cross Section 0.75 sq-mm
Contact Configuration 1NO+1NC
Contact Material Silver
Degree of Protection IP67, IP65
Housing Material Plastic, Glass Fibre Reinforced Thermoplastic
Mechanical Life 20000000 Operations
Rated Current 4 A
Rated Voltage 230 VAC
Standards and Approvals BG-GS-ET-15, CCC, cULus, EC000030, ENIEC 60947-5-1, ENISO 13849-1
Switching Type Snap Action
Weight 50 g
