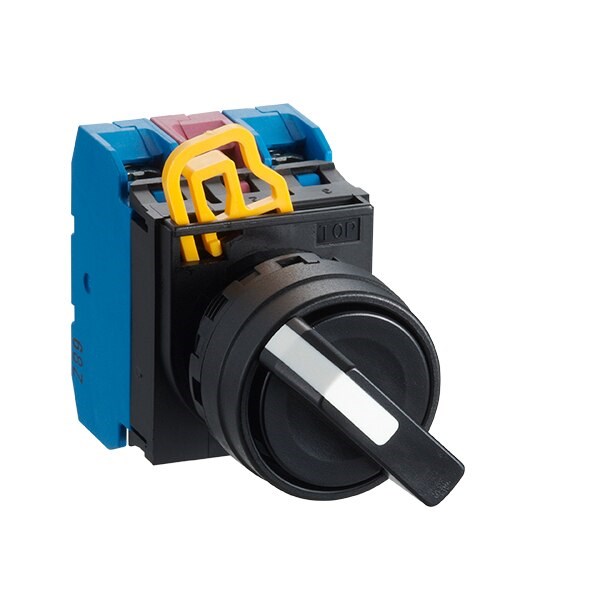

IDEC YW1S-21E11 Selector Switch 2Position 1NO+1NC Left Right Round Plastic M3.5 Screw Terminal 30mm W 41.4mm H

Product Code: YW1S-21E11

  • Selector switch with spring return operation
  • Rated current of 10 A, suitable for various uses
  • Dual protection: IP20 and IP65 ratings
  • Operates in temps from -20 to 55°C
  • Complies with CSA, IEC, and UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Normally-open Contacts 1
No. of Normally-closed Contacts 1
Product Type Selector Switch
Brand IDEC
Series YW
Bezel Material Plastic
Bezel Shape Round
Contact Configuration 1NO+1NC
Degree of Protection IP20, IP65
Depth 69.8 mm
Height 41.4 mm
Insulation Resistance 100 MOhm
Mode of Operation Spring Return
Model Spring Return from Right
Mounting Hole Diameter 22 mm
Number of Positions 2
Operation Position Left, Right
Operational Temperature -20 to 55 deg C
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Insulation Voltage 600 V
Standards and Approvals CSA C22.2 No.14, GB/TI4048.5, IEC60947-1, IEC60947-5-1, UL508
Terminal Type M3.5 Screw
Tightening Torque 1 N-m
Width 30 mm

Description

The IDEC YW1S-21E11 Selector Switch is a compact and efficient control device with a 2-position spring return mechanism. It features space-saving, 10mm thick contact blocks and a removable operator for ease of use. The lightweight design and separate contact block facilitate straightforward installation and removal. This switch is designed for 22mm mounting, making it suitable for streamlined integration into various control panels and systems.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
