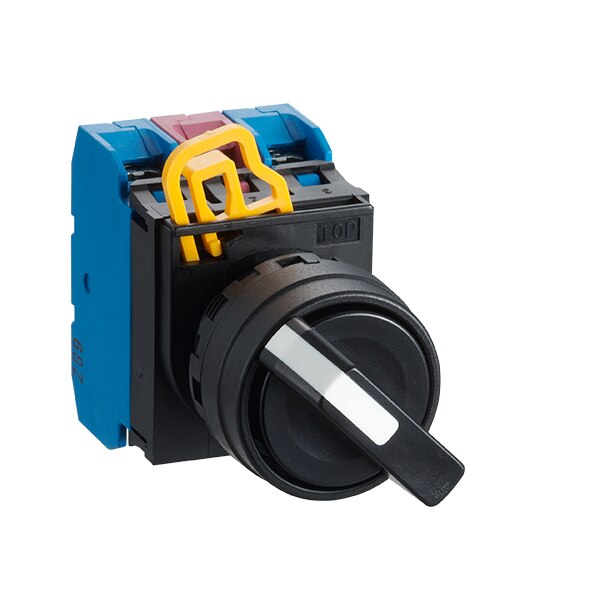

IDEC YW1S-3E11N3 Selector Switch 3Position 1NO+1NC Center Right Maintained Round Plastic 30mm W 41.4mm H

Product Code: YW1S-3E11N3

  • Selector switch with 10A current rating
  • Operates at 50/60 Hz frequency
  • IP20/IP65 protection for durability
  • Maintained function with 1NO+1NC contacts
  • Fits 22 mm mounting hole
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Normally-open Contacts 1
No. of Normally-closed Contacts 1
Product Type Selector Switch
Brand IDEC
Series YW
Bezel Material Plastic
Bezel Shape Round
Contact Configuration 1NO+1NC
Degree of Protection IP20, IP65
Depth 69.8 mm
Function Maintained
Height 41.4 mm
Insulation Resistance 100 MOhm
Model Maintained
Mounting Hole Diameter 22 mm
Number of Positions 3
Operation Position Centre, Right
Operational Temperature -20 to 55 deg C
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Insulation Voltage 600 V
Standards and Approvals CSA C22.2 No.14, GB/TI4048.5, IEC60947-1, IEC60947-5-1, UL508
Terminal Type M3.5 Screw
Tightening Torque 1 N-m
Width 30 mm

Description

The IDEC YW1S-3E11N3 is a 3-position maintained selector switch designed for efficient use of space with its compact and lightweight structure. It features space-saving 10mm thick contact blocks and a removable operator for straightforward handling. The separate contact block design simplifies installation and maintenance processes. This 22mm switch is an ideal solution for streamlined control in various industrial applications.
