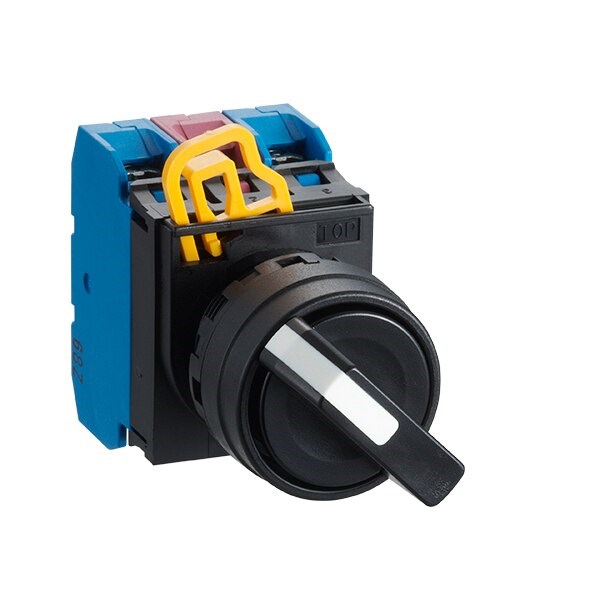

The Selector Switch from the YW series is a reliable choice for industrial and commercial applications, offering robust functionality within its compact design. Engineered to meet rigorous standards, this switch ensures dependable performance across various environments.
Designed with practicality in mind, the selector switch supports a rated current of 10 A and operates efficiently at frequencies of 50/60 Hz. Its dimensions—30 mm in width, 41.4 mm in height, and 69.8 mm in depth—make it suitable for installations where space may be limited but reliability cannot be compromised.
This model accommodates a wide operational temperature range from -20 to 55 degrees Celsius, making it versatile for different settings. The terminal type features an M3.5 screw with a tightening torque of 1 N-m, ensuring secure connections essential for maintaining system integrity.
In terms of protection, the switch boasts an impressive degree of protection with ratings of IP20 and IP65. This dual rating indicates that while the front side can withstand dust ingress and low-pressure water jets (IP65), the rear offers basic protection against larger objects (IP20). Such versatility makes it ideal for environments where exposure to moisture or dust is a concern.
Compliance with international standards such as CSA C22.2 No.14, GB/TI4048.5, IEC60947-1, IEC60947-5-1, and UL508 underscores its quality assurance and suitability for global markets.
The product features a spring return mode of operation with contact configuration set at 2NO (two normally open contacts), providing straightforward yet effective control mechanisms within electrical circuits.
Its round bezel shape crafted from durable plastic not only enhances aesthetic appeal but also contributes to its lightweight construction without sacrificing durability or performance under stress conditions.
Installation is made easy thanks to its mounting hole diameter of 22 mm which fits standard panel cutouts commonly used across various industries. Additionally, the rated insulation voltage stands at an impressive 600 V while insulation resistance is measured at 100 MOhm ensuring safety during operation by minimizing electrical leakage risks.
Operation positions are available on both left and right sides allowing flexibility depending on user preference or installation requirements—a small yet significant feature enhancing user experience significantly over time through ease-of-use adaptability according to specific needs encountered daily within demanding workspaces around Australia’s diverse industrial landscape.
