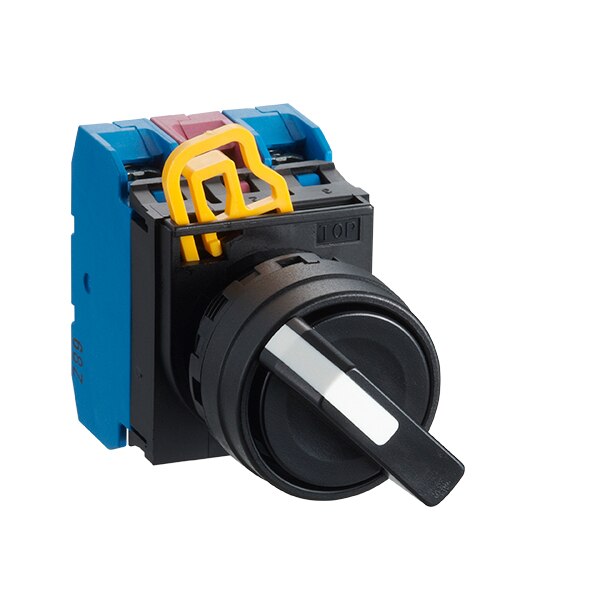

IDEC YW1S-32E11N3 Selector Switch 3Position 1NO+1NC Center Right Round Plastic M3.5 Screw Terminal 30mm W 41.4mm H

Product Code: YW1S-32E11N3

  • Selector switch with 10 A rated current.
  • Spring return operation for ease of use.
  • IP20/IP65 protection for durability.
  • Fits 22 mm mounting holes.
  • Round plastic bezel design.
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Normally-open Contacts 1
No. of Normally-closed Contacts 1
Product Type Selector Switch
Brand IDEC
Series YW
Bezel Material Plastic
Bezel Shape Round
Contact Configuration 1NO+1NC
Degree of Protection IP20, IP65
Depth 69.8 mm
Height 41.4 mm
Insulation Resistance 100 MOhm
Mode of Operation Spring Return
Model Spring Return from Left
Mounting Hole Diameter 22 mm
Number of Positions 3
Operation Position Centre, Right
Operational Temperature -20 to 55 deg C
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Insulation Voltage 600 V
Standards and Approvals CSA C22.2 No.14, GB/TI4048.5, IEC60947-1, IEC60947-5-1, UL508
Terminal Type M3.5 Screw
Tightening Torque 1 N-m
Width 30 mm

Description

The IDEC YW1S-32E11N3 is a 3-position selector switch with a spring return mechanism, designed for efficient use of space. Its slim 10mm contact blocks are both space-saving and easy to install or remove due to their separable design. The switch's compact and lightweight structure allows for straightforward integration into various systems. Ideal for applications requiring quick and reliable switching actions, this selector switch ensures ease of use and maintenance.
