Product Code: YW1S-31E11N3

Selector switch with spring return operation
Rated current of 10 A, suitable for various uses
IP20, IP65 protection for durability
Compact size: 30 mm width, 41.4 mm height
Meets IEC60947 and UL508 standards

Specifications

No. of Normally-open Contacts	1
No. of Normally-closed Contacts	1
Product Type	Selector Switch
Brand	IDEC
Series	YW
Bezel Material	Plastic
Bezel Shape	Round
Contact Configuration	1NO+1NC
Degree of Protection	IP20, IP65
Depth	69.8 mm
Height	41.4 mm
Insulation Resistance	100 MOhm
Mode of Operation	Spring Return
Model	Spring Return from Right
Mounting Hole Diameter	22 mm
Number of Positions	3
Operation Position	Centre, Right
Operational Temperature	-20 to 55 deg C
Rated Current	10 A
Rated Frequency	50/60 Hz
Rated Insulation Voltage	600 V
Standards and Approvals	CSA C22.2 No.14, GB/TI4048.5, IEC60947-1, IEC60947-5-1, UL508
Terminal Type	M3.5 Screw
Tightening Torque	1 N-m
Width	30 mm

Description

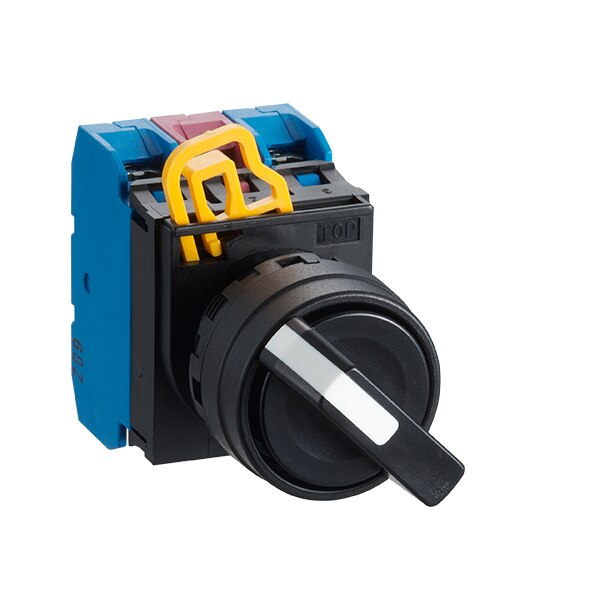

The IDEC YW1S-31E11N3 is a 3-position selector switch with a spring return mechanism, designed for 22mm panel cutouts. Its space-saving design includes 10mm thick contact blocks and a removable operator for ease of use. The compact and lightweight construction, along with a separate contact block, simplifies installation and maintenance. This switch is ideal for applications where efficient use of panel space is critical.

Documents

IPD Product Catalogue

IPD Product Catalogue V17

IDEC YW1S-31E11N3 Selector Switch 3Position 1NO+1NC Center Right Round Plastic M3.5 Screw Terminal 30mm W 41.4mm H
