Product Code: MPS2NKABCB20

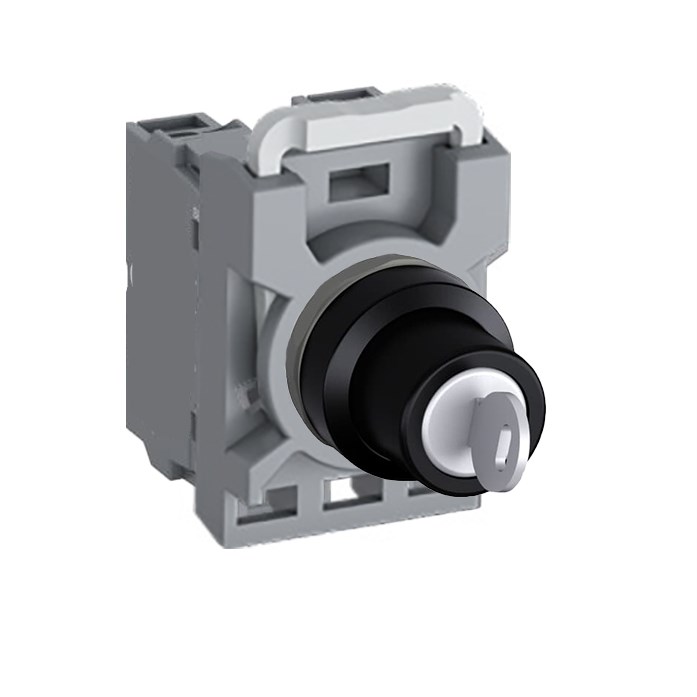

Non-illuminated black plastic selector switch
Operates in -25 to 70°C temperature range
Key actuator with maintained function
Rated insulation voltage of 690 V, 10 A thermal current
Meets CSA, DIN, EN & UL standards

Specifications

Contacts	2NO
No. of Positions	2
Maintained Positions	B,C
Spring Return From	Not Applicable
LED Block Rated Voltage	Not Applicable
Bezel Material	Plastic
Product Type	Selector Switch Kit
Brand	ABB
Series	MPS2
Actuator Type	Key
Colour	Black
Contact Configuration	2NO
Cutout Size	22 mm
Degree of Protection	IP66 (Front), IP20 (Terminals)
Function	Maintained
Illumination	Non-Illuminated
Maintained Position	B, C
Material	Plastic
Mode of Operation	Maintained B to C
Number of Positions	2
Operational Temperature	-25 to 70 deg C
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Standards and Approvals	CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Description

This non-illuminated selector switch kit is key operated with key code 455. It is black in colour and has a 2 position B to C maintained configuration. The switch has 2 normally open (NO) contacts. It belongs to a modular plastic range and has an IP66 front rating and IP20 terminals rating.

Documents

IPD Product Catalogue

IPD Product Catalogue V17
