Specifications

Contacts	1NO + 1NC
No. of Positions	2
Maintained Positions	Not Applicable
Spring Return From	C->B
LED Block Rated Voltage	Not Applicable
Bezel Material	Metal

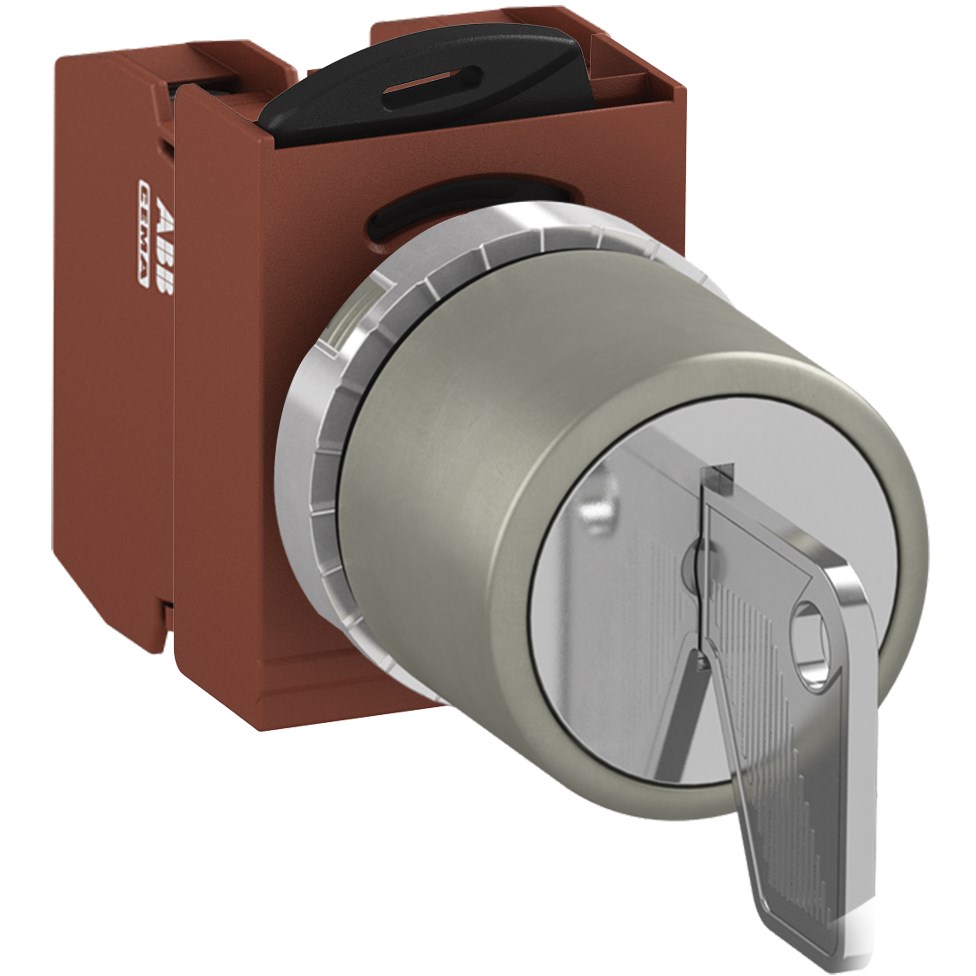

Product Type	Selector Switch Kit
Brand	ABB
Series	MMS2
Actuator Type	Key
Colour	Not Applicable
Connection Type	Faston
Contact Configuration	1NO+1NC
Cutout Size	22 mm
Degree of Protection	IP66
Function	Momentary
Illumination	Non-Illuminated
Light Blocks Type	LED Block
Maintained Position	C, B
Material	Metal
Number of Positions	2
Operational Temperature	-30 to 70 deg C
Rated Impulse Withstand Voltage	4 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Standards and Approvals	CSA C22.2 No. 14, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508
