Specifications

Contacts	2NC
No. of Positions	3
Spring Return From	Key Removal ABC
LED Block Rated Voltage	Not Applicable
Bezel Material	Plastic
Maintained Positions	A,B,C

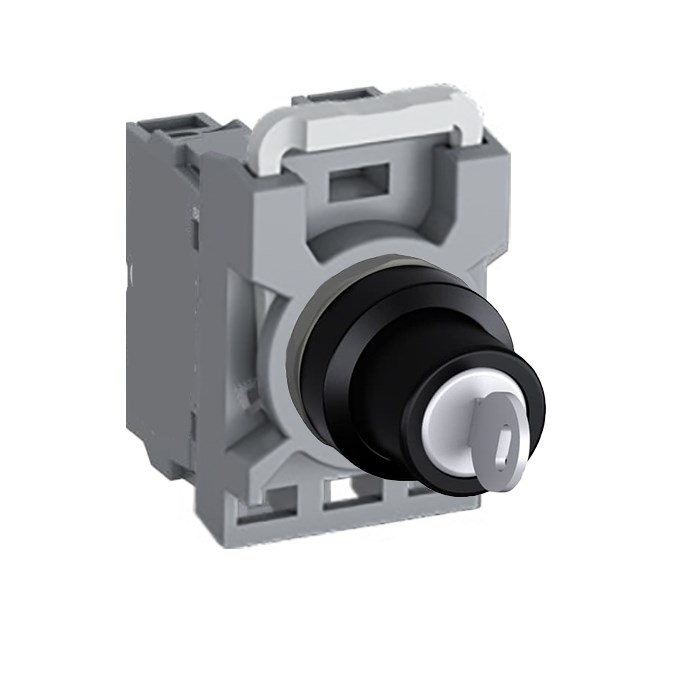

Product Type	Selector Switch Kit
Brand	ABB
Series	MPS3
Actuator Type	Key
Colour	Black
Contact Configuration	2NC
Cutout Size	22 mm
Function	Maintained
Illumination	Non-Illuminated
Maintained Position	A, B, C
Material	Plastic
Number of Positions	3
Operational Temperature	-25 to 70 deg C
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Standards and Approvals	CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508
