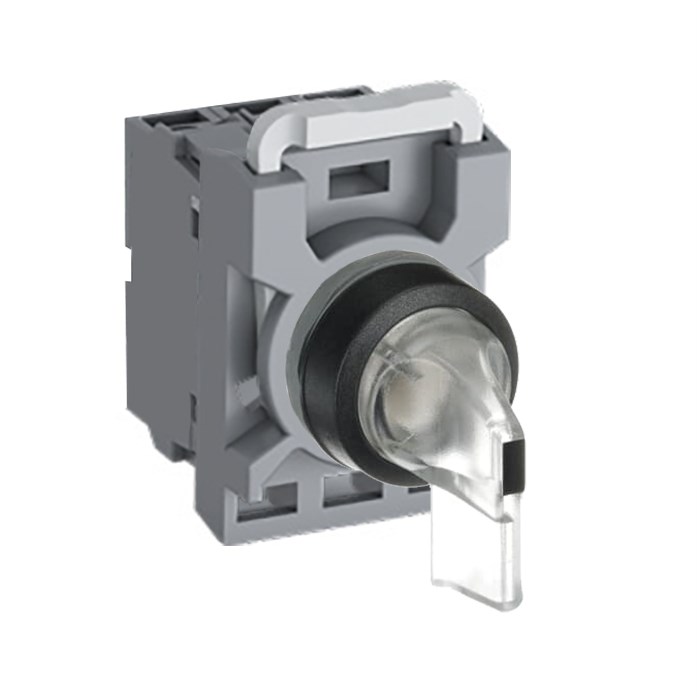

Product Code: MPS2ILAACC411

Illuminated selector switch with clear colour
Operates at 110 VAC with 1NO+1NC contacts
Long handle actuator for maintained function
Suitable for temperatures from -25 to 70°C
Complies with multiple international standards

Specifications

Contacts	1NO + 1NC
No. of Positions	2
Rated Voltage AC (V)	110
Spring Return From	Not Applicable
LED Block Rated Voltage	110-130 VAC
Bezel Material	Plastic
Maintained Positions	A,C
Product Type	Selector Switch Kit
Brand	ABB
Series	MPS2
Actuator Type	Long Handle
Colour	Clear
Contact Configuration	1NO+1NC
Cutout Size	22 mm
Function	Maintained
Illumination	Illuminated
LED Colour	Clear
Maintained Position	A, C
Material	Plastic
Mode of Operation	Maintained A to C
Number of Positions	2
Operational Temperature	-25 to 70 deg C
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	110 VAC
Standards and Approvals	CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Description

This Illuminated Selector Switch Kit is designed for engineers seeking a clear and efficient solution. It operates at 110VAC and offers a fixed 2-position configuration with A and C options. The long handle ensures easy operation, while the switch is maintained in its position. The kit includes 1 normally closed (1NC) and 1 normally open (1NO) contact, providing flexibility in usage. Made from modular plastic, this selector switch kit combines durability with a lightweight design.

Documents

IPD Product Catalogue

IPD Product Catalogue V17
