When it comes to reliable and efficient components in industrial and commercial environments, understanding the technical specifications of a product is crucial. For those seeking a dependable solution for their electrical systems, this particular device offers an array of features suited for demanding applications.

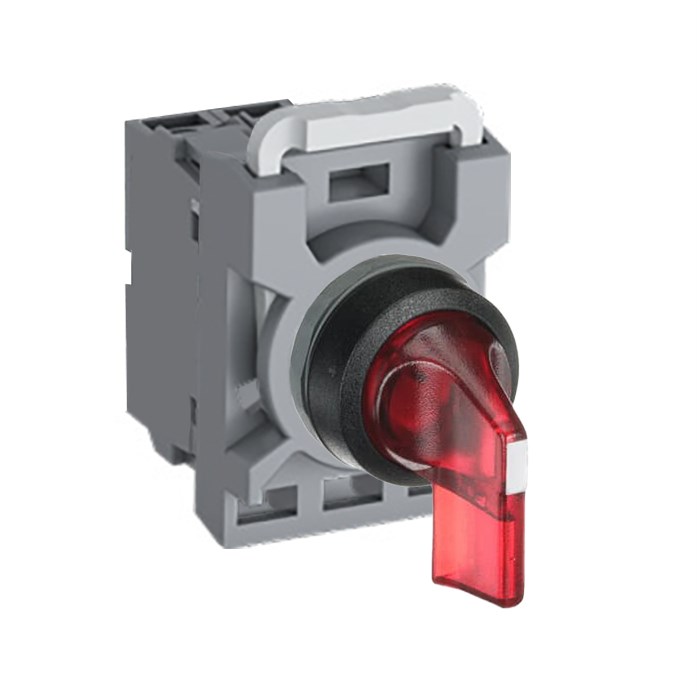

Operating at a rated voltage of 12 VDC, this component is designed with illumination functionality, making it easy to identify even in low-light conditions. Its vibrant red color ensures visibility and quick recognition within complex systems. Constructed from durable plastic material, it can withstand the rigors of industrial use while maintaining performance integrity.
The operational temperature range spans from -25°C to 70°C, allowing for versatile deployment across various environmental conditions without compromising reliability or efficiency. This broad temperature tolerance makes it suitable for both indoor and outdoor installations where temperature fluctuations are common.
Adhering to numerous standards and approvals such as CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, and UL 508 ensures compliance with international safety and performance benchmarks. These certifications provide peace of mind that the product meets stringent quality requirements necessary for safe operation in diverse settings.
Part of the MPS2 series known for its robustness and reliability in critical operations; this component boasts a rated insulation voltage of up to 690 V—an essential feature when dealing with high-voltage applications ensuring adequate protection against electrical surges.
Its contact configuration is set at 1NC (normally closed), which is ideal for circuits requiring fail-safe operations by defaulting to a closed state during power loss or system failure scenarios. With a rated impulse withstand voltage reaching up to an impressive 6 kV; it's engineered to handle transient overvoltages effectively protecting sensitive equipment connected downstream.
The actuator type features a long handle design facilitating ease-of-use especially in emergency situations where quick actuation is required—a vital aspect when considering user interface ergonomics within control panels or machinery setups.
Functionally maintained positions A and C provide consistent engagement ensuring stability during prolonged usage cycles often encountered in automation processes or repetitive task environments common within manufacturing sectors.
Rated thermal current stands at a solid capacity of up to10 A supporting substantial loads seamlessly while maintaining optimal thermal management preventing overheating risks associated with prolonged high-current flow through circuit pathways enhancing overall system longevity.
Designed with practicality in mind; the cutout size measures at industry-standard dimensions (22 mm) simplifying integration into existing panel layouts minimizing installation complexity saving valuable time on site deployments without necessitating additional modifications thus streamlining upgrade paths efficiently across facility infrastructures.
