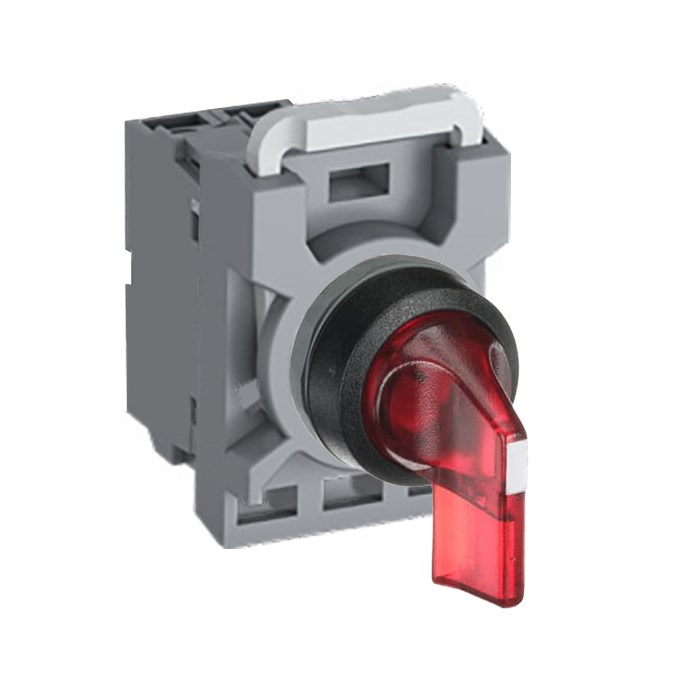

The MPS2 Series switch is a robust and reliable choice for professionals in the industrial and commercial sectors. Designed to meet stringent standards, it offers dependable performance across a range of applications. This switch operates at a rated voltage of 12 VDC and features an illuminated red actuator, making it easy to locate and operate even in low-light conditions.
Constructed from durable plastic, the MPS2 Series is built to withstand challenging environments with an operational temperature range extending from -25 to 70 degrees Celsius. The long handle actuator type ensures ease of use, while its maintained function provides stability in operation without requiring constant pressure.
One of the key strengths of this product lies in its compliance with multiple international standards and approvals, including CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5 as well as UL 508 certification. These endorsements guarantee that the switch meets high safety and reliability criteria essential for modern electrical installations.
The contact configuration is set as normally open (1NO), which means it remains open until activated by an external force—ideal for applications where default off-state is required until manually engaged. With a rated insulation voltage of up to 690 V and a rated impulse withstand voltage of up to 6 kV, this switch can handle significant electrical loads safely.
Furthermore, the MPS2 Series supports a rated thermal current of up to 10 A ensuring that it can manage moderate power requirements effectively without overheating or compromising on performance. The cutout size measures at a standard dimension of 22 mm facilitating straightforward installation into existing panels or control systems.
Maintained positions are labeled as A and C providing clarity on operational status at any given time enhancing both usability and safety during maintenance checks or routine operations.
Overall this product offers an excellent balance between functionality durability and compliance making it suitable for various demanding industrial environments where reliability cannot be compromised.
