Specifications

Contacts	2NO
No. of Positions	2
Rated Voltage AC (V)	230
Maintained Positions	A,C
Spring Return From	Not Applicable
LED Block Rated Voltage	230 VAC
Bezel Material	Plastic
Product Type	Selector Switch Kit
Brand	ABB
Series	MPS2
Actuator Type	Long Handle
Colour	Red
Contact Configuration	2NO
Cutout Size	22 mm
Degree of Protection	IP66 (Front), IP20 (Terminals)
Function	Maintained
Illumination	Illuminated
Lamp Type	Built-in LED
LED Colour	Red
Maintained Position	A, C
Material	Plastic
Mode of Operation	Maintained A to C
Number of Positions	2
Operational Temperature	-25 to 70 deg C
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	230 VAC
Standards and Approvals	CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Description

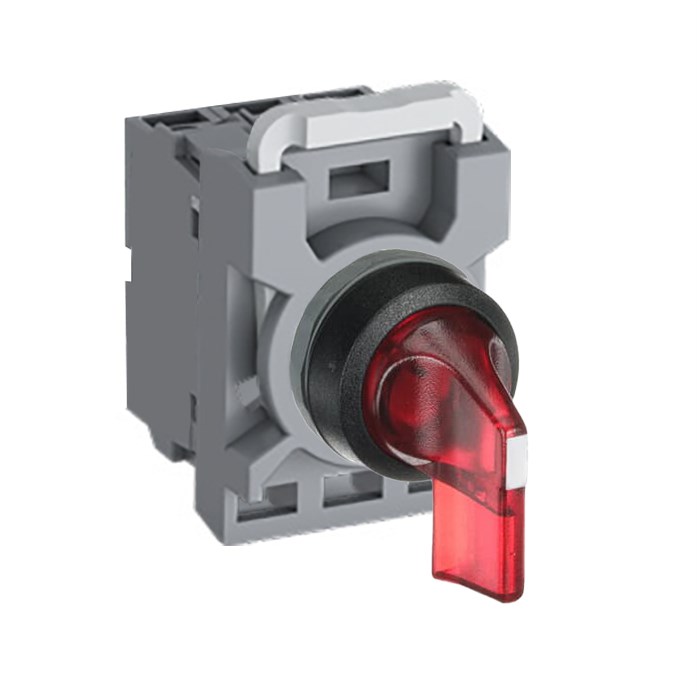

This illuminated selector switch kit features a red colour and has a 2-position return from A to C. It is equipped with a long handle that is maintained and integrated with a red LED. The switch operates on 230 V AC and has 2 normally open (NO) contacts. It belongs to a modular plastic range and has an IP66 rating for the front and an IP20 rating for the terminals.

Documents

IPD Product Catalogue

IPD Product Catalogue V17

ABB MPS2ILAACR720 Selector Switch Kit Red 230VAC 2Position 2NO Illuminated Maintained Long Handle Plastic

Product Code: MPS2ILAACR720
