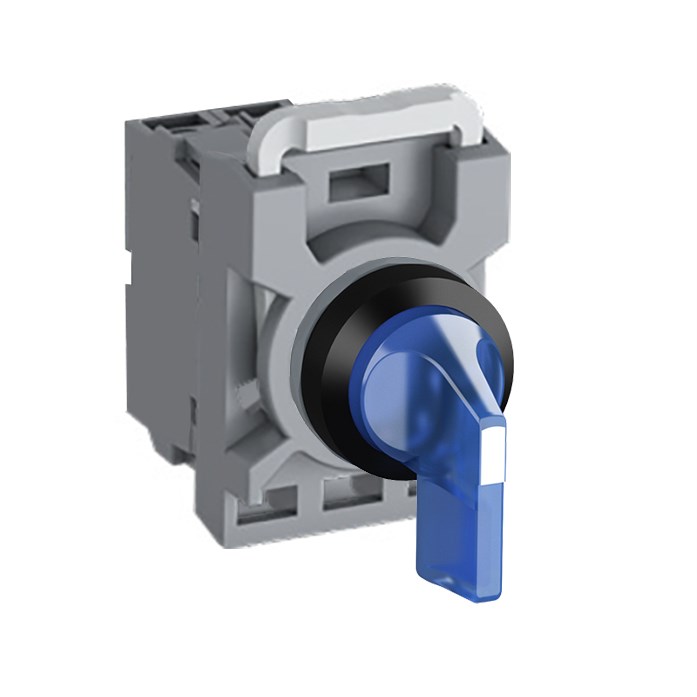

The MPS2 series offers a robust and reliable solution for industrial and commercial applications with its thoughtfully designed features. Operating at a rated voltage of 24 VAC/VDC, this device is specifically engineered to ensure optimal functionality in demanding environments. The illuminated blue actuator, crafted from durable plastic, not only enhances visibility but also adds an aesthetic touch to your control panels.
Designed to withstand operational temperatures ranging from -25 to 70 degrees Celsius, the MPS2 series maintains performance across diverse climatic conditions. This makes it suitable for various industrial settings where temperature fluctuations are common.
Safety and compliance are paramount in the design of this product. It adheres to multiple international standards including CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5 as well as UL 508 certifications. These approvals underscore its reliability and suitability for global markets.
The MPS2 series features a rated insulation voltage of up to 690 V and boasts a rated impulse withstand voltage of 6 kV. Such specifications ensure that the device can handle electrical surges effectively while maintaining safety standards.
This model comes with a contact configuration of one normally open (1NO), providing straightforward integration into existing systems or new setups requiring simple on/off functionality. With a rated thermal current capacity of up to 10 A, it stands ready for use in circuits carrying substantial loads without compromising on performance.
A long handle actuator type characterizes this product's ergonomic design which supports ease of use during operation. Its maintained function ensures that once actuated into position B or C, it will remain there until manually reset—ideal for applications where consistent operation is required over time.
Installation is simplified with a standard cutout size of 22 mm making it compatible with most panel designs without necessitating additional modifications or specialized tools.
In summary, the MPS2 series delivers dependable performance backed by rigorous safety standards and versatile application capabilities suited for various industrial needs.
