Product Code: MPS2ILABCC720

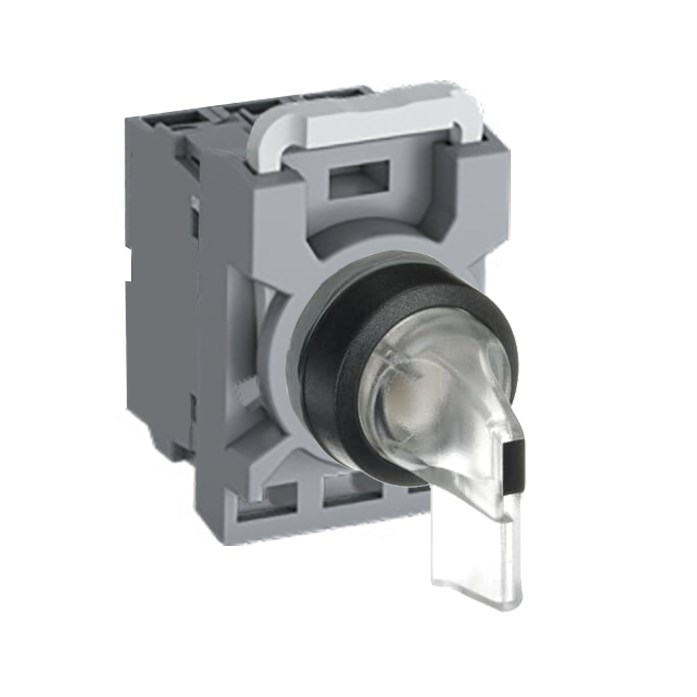

Illuminated selector switch for clear visibility
Operates at 230 VAC with 690 V insulation
Long handle actuator, maintained function
Withstands temperatures from -25 to 70°C
Compliant with CSA, DIN, EN, IEC, UL standards

Specifications

Contacts	2NO
No. of Positions	2
Rated Voltage AC (V)	230
Maintained Positions	B,C
Spring Return From	Not Applicable
LED Block Rated Voltage	230 VAC
Bezel Material	Plastic
Product Type	Selector Switch Kit
Brand	ABB
Series	MPS2
Actuator Type	Long Handle
Colour	Clear
Contact Configuration	2NO
Cutout Size	22 mm
Degree of Protection	IP66 (Front), IP20 (Terminals)
Function	Maintained
Illumination	Illuminated
Lamp Type	Built-in LED
LED Colour	White
Maintained Position	B, C
Material	Plastic
Mode of Operation	Maintained B to C
Number of Positions	2
Operational Temperature	-25 to 70 deg C
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	230 VAC
Standards and Approvals	CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Description

The Illuminated Selector Switch Kit is a clear, 2-position switch with a return from position B to C. It features a long handle for easy operation and has an integrated LED that emits white light. The switch operates on 230 V AC power and has 2 normally open (NO) contacts. This kit is part of a modular plastic range and has an IP66 rating for the front and an IP20 rating for the terminals.
