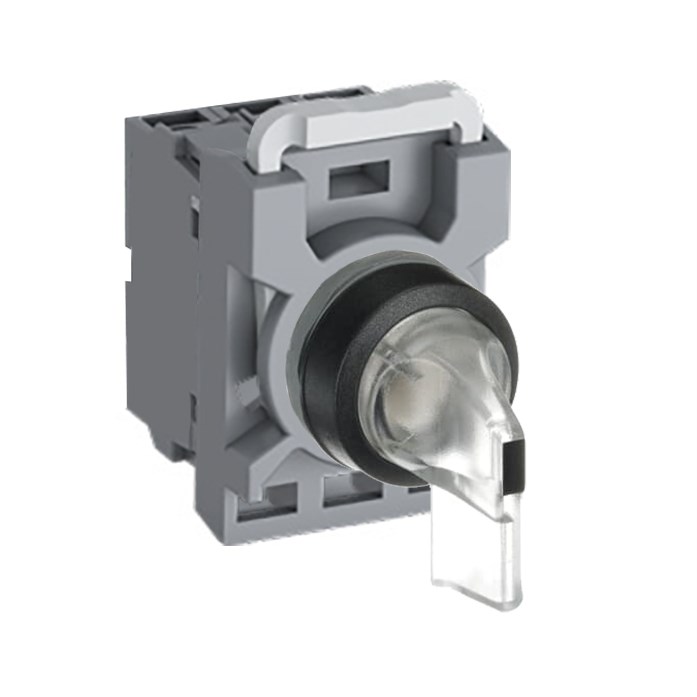

The MPS2 series selector switch is a reliable choice for industrial and commercial applications, designed to meet the rigorous demands of electrical engineering environments. Operating at a rated voltage of 110 VAC, this illuminated switch provides clear visibility and easy operation in various settings. Its clear plastic construction ensures durability while maintaining a lightweight profile.
Engineered to function within an operational temperature range from -25 to 70 degrees Celsius, the selector switch is versatile enough for use in diverse climates and conditions. It adheres to multiple standards and approvals, including CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, and UL 508—ensuring compliance with international safety and performance requirements.
The selector switch features a long handle actuator type that facilitates momentary switching functions. This makes it suitable for applications requiring quick engagement without permanent contact changes. The contact configuration is set as normally open (1NO), providing straightforward integration into existing systems without complex rewiring needs.
With a rated insulation voltage of up to 690 V and an impressive rated impulse withstand voltage of 6 kV, the switch offers robust protection against electrical surges. Additionally, its rated thermal current capacity stands at a solid 10 A—supporting reliable operation under consistent load conditions.
Designed with practicality in mind, the cutout size measures at an industry-standard of 22 mm for seamless installation across various panels or control boards. The maintained positions C and B offer flexibility in setup configurations depending on specific operational requirements.
Overall, this MPS2 series selector switch combines functionality with adherence to stringent industry standards—a dependable component for any project demanding precision control solutions within electrical circuits or automation systems.
