Product Code: MPS2ILOCBR011

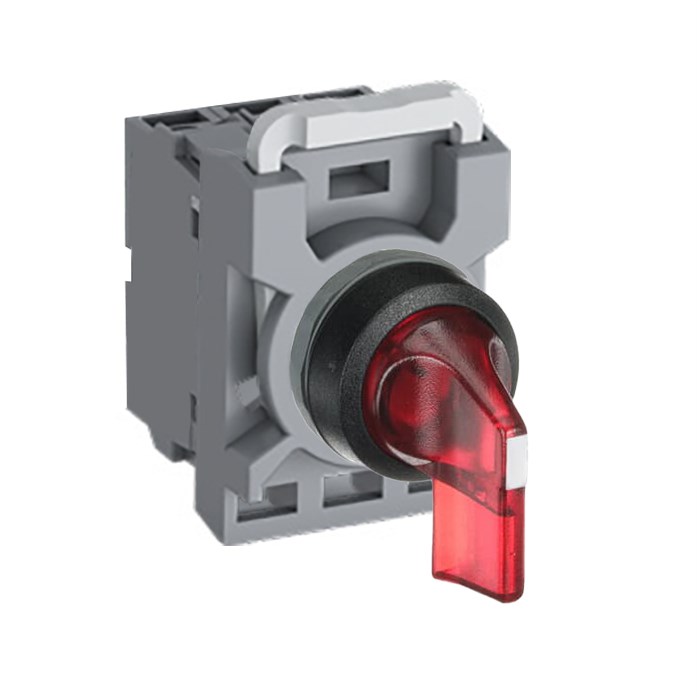

Illuminated red selector switch for easy visibility
Operates at 12 VDC with long handle actuator
Supports 1NO+1NC contact configuration
Rated thermal current of 10A and impulse withstand of 6kV
Fits standard 22mm cutout size

Specifications

Contacts	1NO + 1NC
No. of Positions	2
Rated Voltage DC (V)	12
Maintained Positions	Not Applicable
Spring Return From	C->B
LED Block Rated Voltage	12 VDC
Bezel Material	Plastic
Product Type	Selector Switch Kit
Brand	ABB
Series	MPS2
Actuator Type	Long Handle
Colour	Red
Contact Configuration	1NO+1NC
Cutout Size	22 mm
Degree of Protection	IP66 (Front), IP20 (Terminals)
Function	Momentary
Illumination	Illuminated
Lamp Type	Built-in LED
LED Colour	Red
Maintained Position	C, B
Material	Plastic
Mode of Operation	Momentary C to B
Number of Positions	2
Operational Temperature	-25 to 70 deg C
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	12 VDC
Standards and Approvals	CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Description

This illuminated selector switch kit features a red colour and has a 2-position return from C to B. It is equipped with a long handle and an integrated red LED for momentary use. The switch operates on 12V DC power and has 1 normally open (NO) contact and 1 normally closed (NC) contact. It belongs to a modular plastic range and has an IP66 rating for the front and an IP20 rating for the terminals.
