Product Code: MPS2ILOCBR020

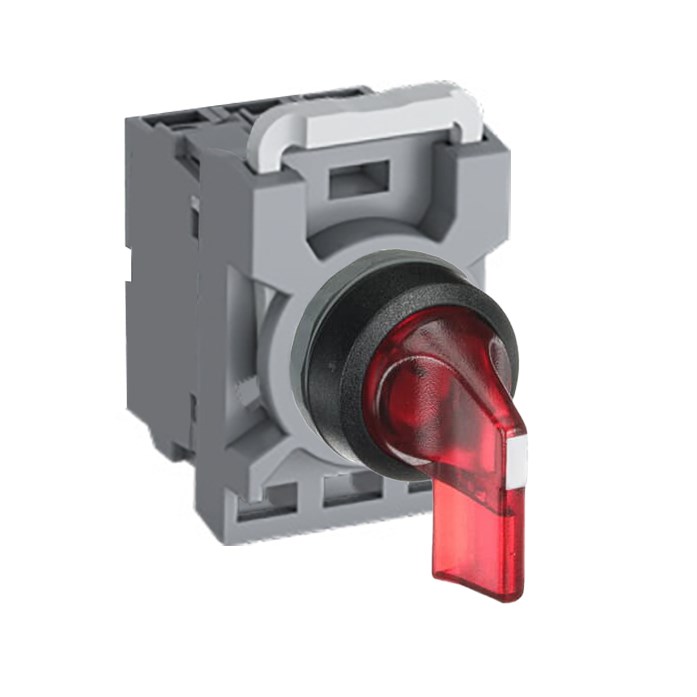

Illuminated red selector switch for easy visibility
Operates at 12 VDC with a long handle design
Durable plastic construction withstands -25 to 70°C
Rated insulation voltage of 690 V and impulse withstand of 6 kV
Complies with multiple international standards

Specifications

Contacts	2NO
No. of Positions	2
Rated Voltage DC (V)	12
Spring Return From	C->B
LED Block Rated Voltage	12 VDC
Bezel Material	Plastic
Maintained Positions	Not Applicable
Product Type	Selector Switch Kit
Brand	ABB
Series	MPS2
Actuator Type	Long Handle
Colour	Red
Contact Configuration	2NO
Cutout Size	22 mm
Degree of Protection	IP66 (Front), IP20 (Terminals)
Function	Momentary
Illumination	Illuminated
Lamp Type	Built-in LED
LED Colour	Red
Maintained Position	C, B
Material	Plastic
Mode of Operation	Momentary C to B
Number of Positions	2
Operational Temperature	-25 to 70 deg C
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	12 VDC
Standards and Approvals	CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Description

This illuminated selector switch kit features a red colour and has a 2-position return from C to B. It comes with a long handle and a momentary integrated LED in red. The switch operates on 12V DC power and has 2 normally open (NO) contacts. It is part of a modular plastic range and has an IP66 rating for the front and an IP20 rating for the terminals.
