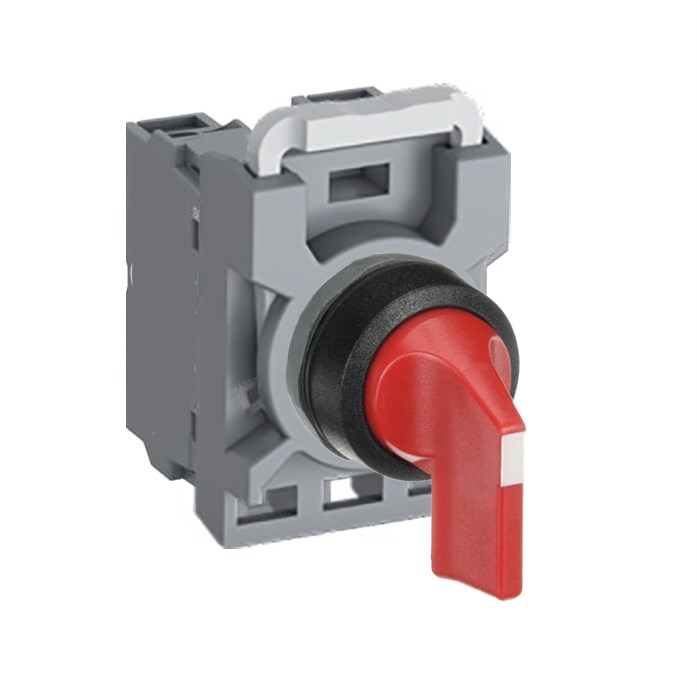

ABB MPS2NLABCR11 Selector Switch Kit Red 2Position 1NO+1NC Non-Illuminated Maintained Long Handle Plastic

Product Code: MPS2NLABCR11

  • Red, non-illuminated selector switch
  • Durable plastic construction
  • Long handle with maintained function
  • 1NO+1NC contact configuration
  • Rated for 690V insulation voltage
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO + 1NC
No. of Positions 2
Maintained Positions B,C
Spring Return From Not Applicable
LED Block Rated Voltage Not Applicable
Bezel Material Plastic
Product Type Selector Switch Kit
Brand ABB
Series MPS2
Actuator Type Long Handle
Colour Red
Contact Configuration 1NO+1NC
Cutout Size 22 mm
Function Maintained
Illumination Non-Illuminated
Maintained Position B, C
Material Plastic
Mode of Operation Maintained B to C
Number of Positions 2
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Standards and Approvals CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Description

This Non-Illuminated Selector switch Kit is designed for engineers in need of a red 2 position fixed B,C long handle maintained switch. It is part of our modular plastic range and features 1 normally open (NO) and 1 normally closed (NC) contact.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
