Specifications

Contacts	1NO + 1NC
No. of Positions	2
Spring Return From	C->B
LED Block Rated Voltage	Not Applicable
Bezel Material	Plastic
Maintained Positions	Not Applicable
Product Type	Selector Switch Kit
Brand	ABB
Series	MPS2
Actuator Type	Long Handle
Colour	Red
Contact Configuration	1NO+1NC
Cutout Size	22 mm
Function	Momentary
Illumination	Non-Illuminated
Maintained Position	C, B
Material	Plastic
Mode of Operation	Momentary, spring return from C to B
Number of Positions	2
Operational Temperature	-25 to 70 deg C
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Standards and Approvals	CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Description

This Non-Illuminated Selector switch Kit is designed for engineers in need of a reliable and durable solution. The switch features a red colour and has 2 positions with a spring return from position C to B. It comes with a long handle for easy operation. The switch is momentary and has 1 normally open (NO) contact and 1 normally closed (NC) contact. This kit is part of our modular plastic range, ensuring compatibility with other products in the range.

Documents

IPD Product Catalogue

IPD Product Catalogue V17

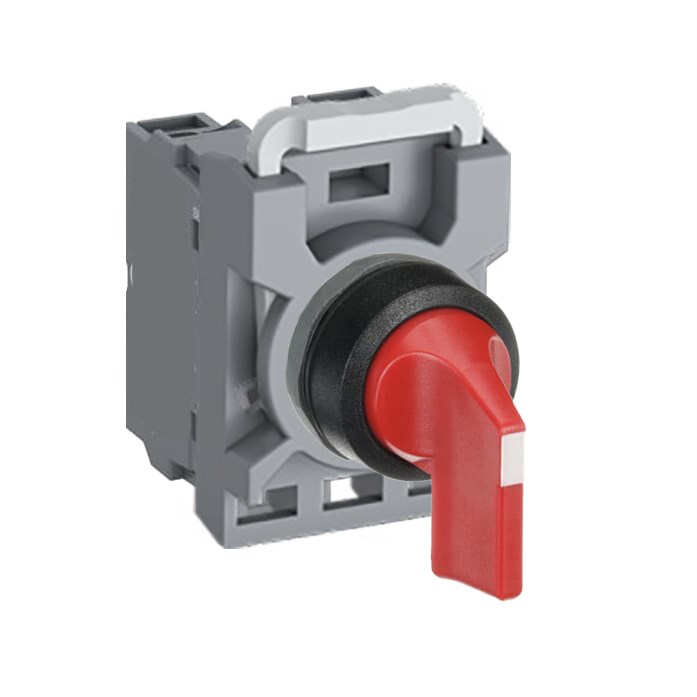

ABB MPS2NLOCBR11 Selector Switch Kit Red 2Position 1NO+1NC Non-Illuminated Momentary Long Handle Plastic

Product Code: MPS2NLOCBR11
