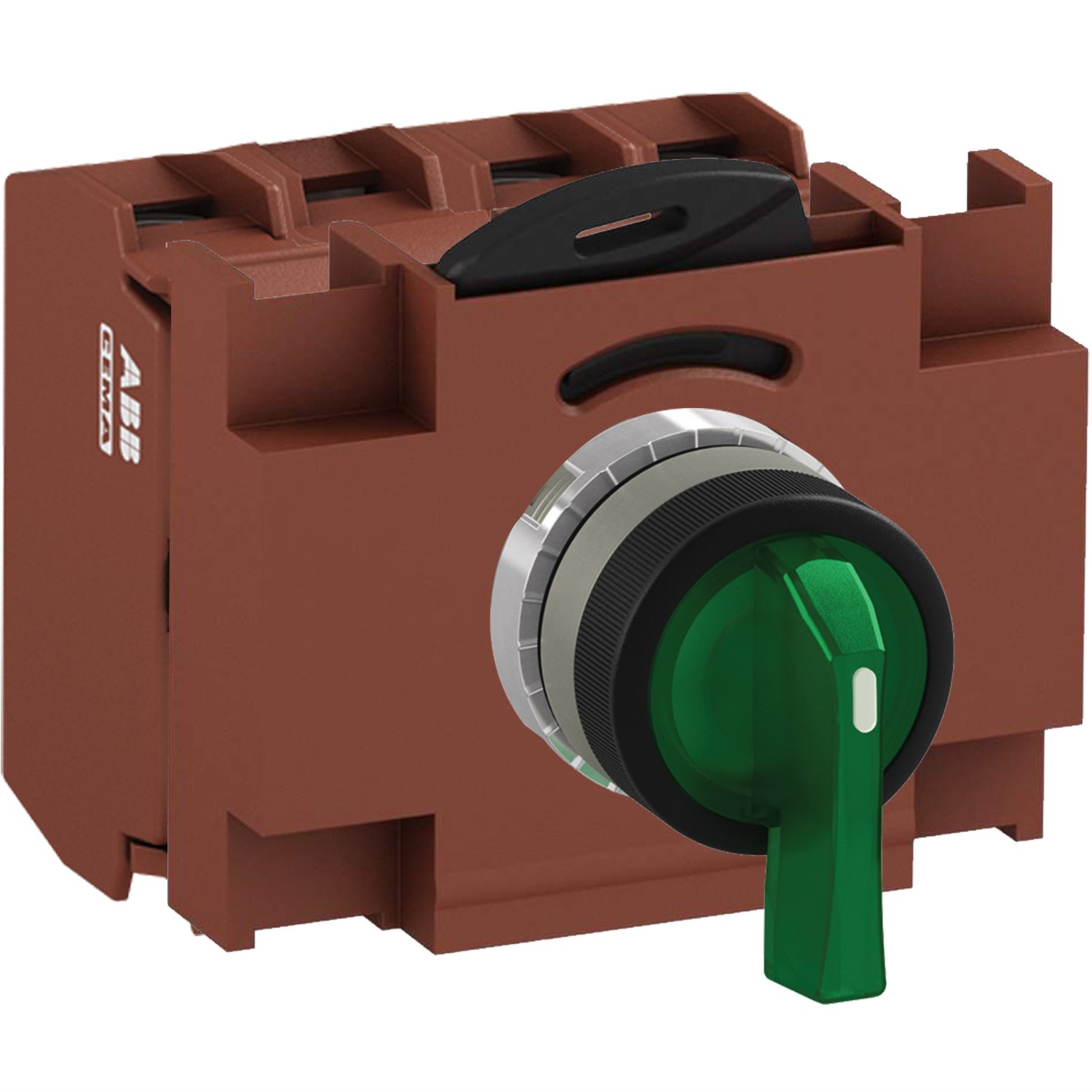

ABB MMS3ILAABCGSP003 Selector Switch Kit Green 6VAC/DC 3Position 3NC Illuminated Screw Maintained Long Handle

Product Code: MMS3ILAABCGSP003

  • Illuminated green metal actuator for clear visibility
  • IP66 protection ensures durability in harsh conditions
  • Operates within -30 to 70°C temperature range
  • Screw connection type for secure installation
  • Complies with multiple international standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 3NC
No. of Positions 3
Maintained Positions A,B,C
Spring Return From Not Applicable
LED Block Rated Voltage 6 VAC/DC
Bezel Material Metal
Product Type Selector Switch Kit
Brand ABB
Series MMS
Actuator Type Long Handle
Colour Green
Connection Type Screw
Contact Configuration 3NC
Cutout Size 22 mm
Degree of Protection IP66
Function Maintained
Illumination Illuminated
Light Blocks Type Power Supply
Maintained Position A, B, C
Material Metal
Number of Positions 3
Operational Temperature -30 to 70 deg C
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 6 VAC/VDC
Standards and Approvals CSA C22.2 No. 14, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
