When it comes to selecting an industrial switch for your electrical engineering or automation projects, understanding the technical specifications is crucial. This product from the MMS series offers a blend of reliability and functionality, making it suitable for various commercial and industrial applications.
The switch operates at a rated voltage of 12 VAC/VDC, ensuring compatibility with low-voltage systems. Its illumination feature enhances visibility in dimly lit environments, while the white color provides a neutral aesthetic that can blend seamlessly into most control panels. The metal construction guarantees durability and robustness, essential for demanding settings.
Designed to withstand harsh conditions, this switch operates efficiently within an operational temperature range of -30 to 70 degrees Celsius. It boasts an impressive degree of protection with an IP66 rating, ensuring resistance against dust ingress and powerful water jets—a vital feature for outdoor or exposed installations.
Adhering to rigorous industry standards such as CSA C22.2 No. 14, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-5-1, IEC/EN 60947-5-5, and UL 508 underscores its compliance with international safety and performance benchmarks.
The Faston connection type simplifies installation by allowing quick and secure connections without the need for specialized tools. With a rated insulation voltage of 690 V and a rated impulse withstand voltage of 4 kV, this switch is designed to handle high-stress electrical environments safely.

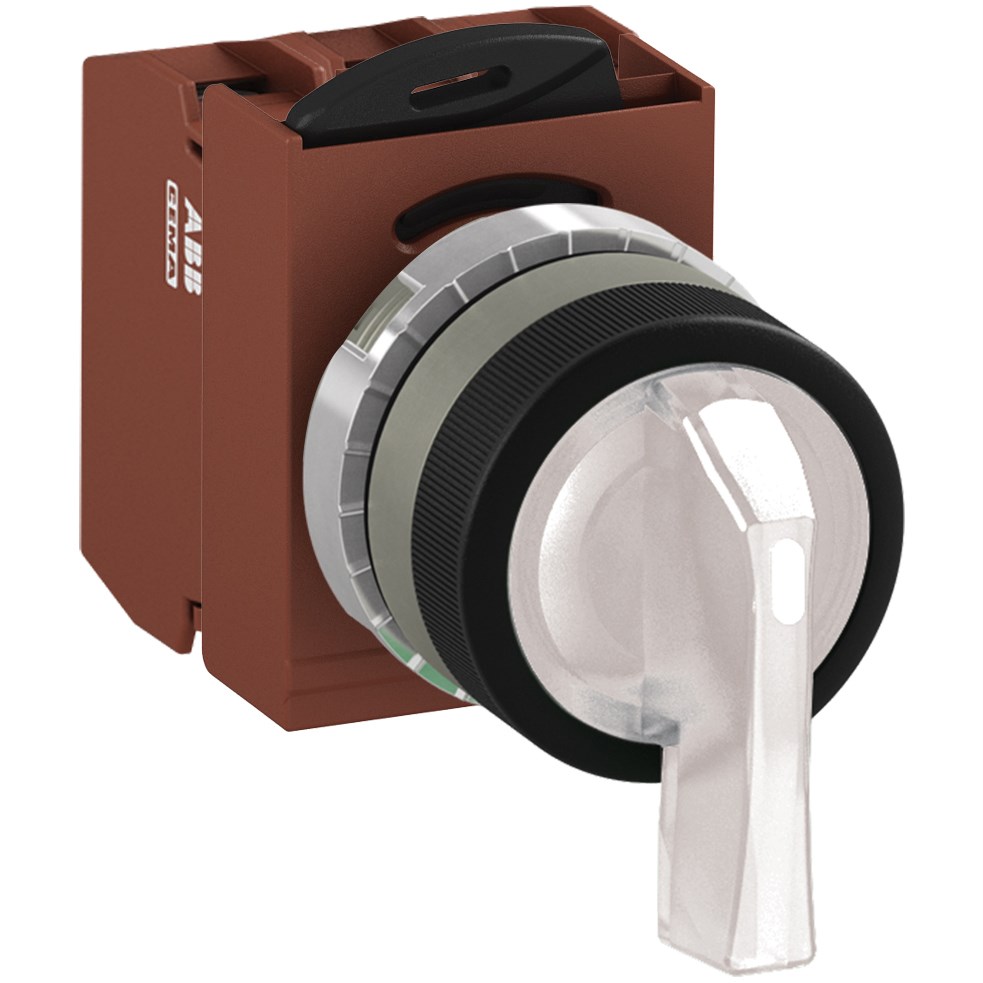

Featuring a long handle actuator type with maintained function positions (A, B, C), it ensures precise control over operations—ideal for applications requiring stable switching states without manual holding pressure.
With contact configuration set at 2NC (two normally closed contacts), it's perfect for circuits that require interruption when activated. The rated thermal current stands at 10 A—suitable for moderate power loads in various applications.
The cutout size measures at standard industry dimension of 22 mm facilitating easy integration into existing setups or new designs without necessitating special modifications.
Additionally, the light blocks are powered via direct power supply enhancing operational efficiency by reducing complexity in wiring arrangements within control systems.
