Specifications

Contacts	1NO + 1NC
No. of Positions	3
Maintained Positions	A,B,C
Spring Return From	Not Applicable
LED Block Rated Voltage	Not Applicable
Bezel Material	Metal

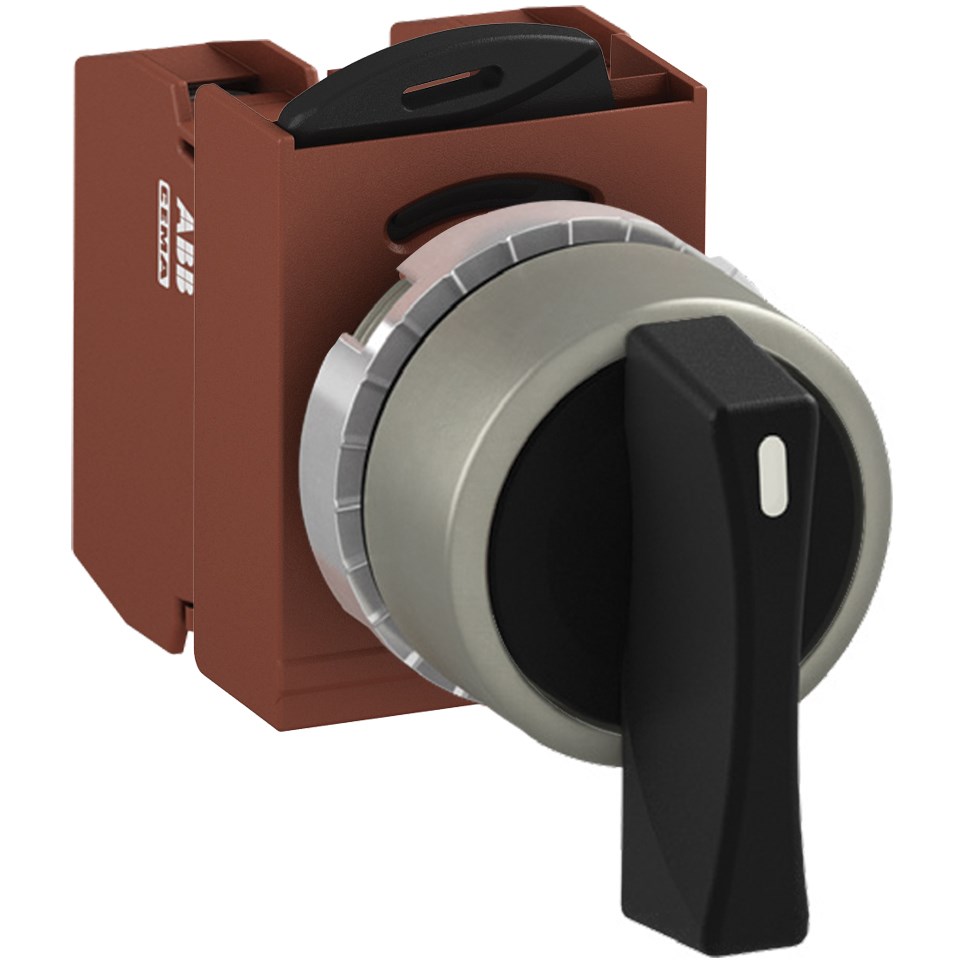

Product Type	Selector Switch Kit
Brand	ABB
Series	MMS
Actuator Type	Long Handle
Colour	Black
Connection Type	Faston
Contact Configuration	1NO+1NC
Cutout Size	22 mm
Degree of Protection	IP66
Function	Maintained
Illumination	Non-Illuminated
Light Blocks Type	Not Applicable
Maintained Position	A, B, C
Material	Metal
Number of Positions	3
Operational Temperature	-30 to 70 deg C
Rated Impulse Withstand Voltage	4 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Standards and Approvals	CSA C22.2 No. 14, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508
