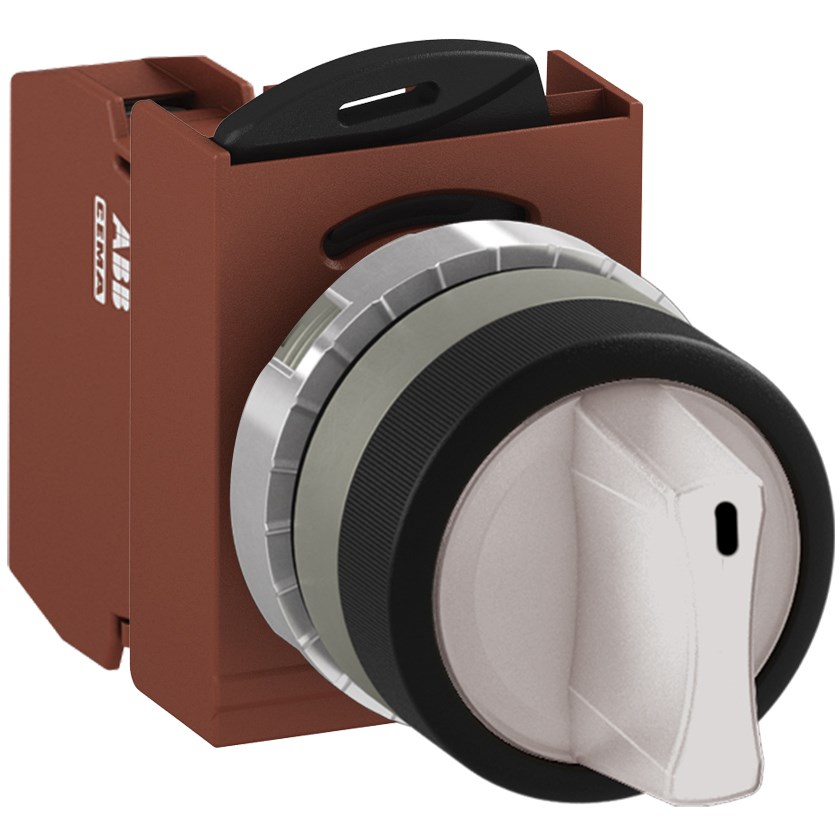

ABB MMS2ISAACWSP310 Selector Switch Kit White 110VAC 2Position 1NO Illuminated Screw Maintained Short Handle A C

Product Code: MMS2ISAACWSP310

  • Illuminated short handle for easy operation
  • Robust metal build with IP66 protection
  • Operates efficiently from -30 to 70°C
  • Meets multiple international standards
  • Screw connection for secure installation
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO
No. of Positions 2
Maintained Positions A,C
Spring Return From Not Applicable
LED Block Rated Voltage 110 VAC
Bezel Material Metal
Product Type Selector Switch Kit
Brand ABB
Series MMS2
Actuator Type Short Handle
Colour White
Connection Type Screw
Contact Configuration 1NO
Cutout Size 22 mm
Degree of Protection IP66
Function Maintained
Illumination Illuminated
Light Blocks Type Power Supply
Maintained Position A, C
Material Metal
Number of Positions 2
Operational Temperature -30 to 70 deg C
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 110 VAC
Standards and Approvals CSA C22.2 No. 14, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
