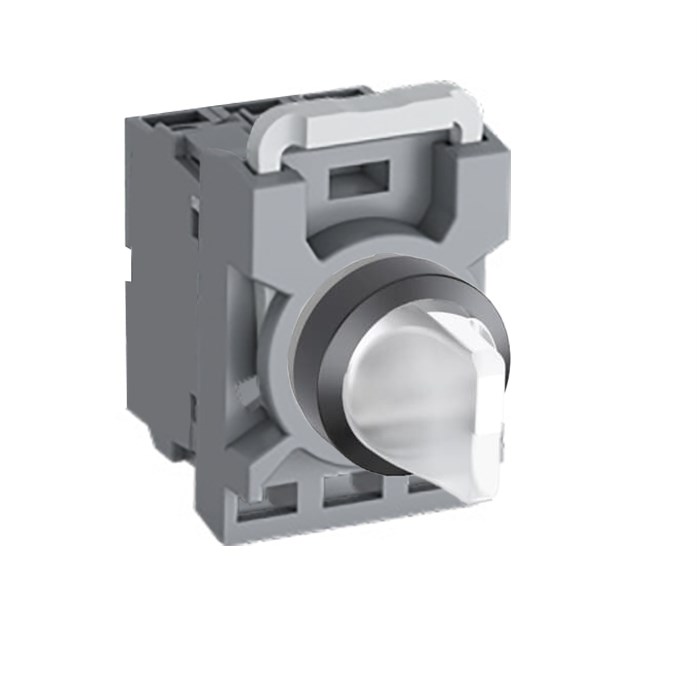

ABB MPS2ISABCC411 Selector Switch Kit Clear 110VAC 2Position 1NO+1NC Illuminated Maintained Short Handle Plastic

Product Code: MPS2ISABCC411

  • Illuminated clear selector switch
  • Operates at 110 VAC with 690 V insulation
  • Short handle, maintained function
  • Contact config: 1NO+1NC
  • Fits standard 22 mm cutout
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO + 1NC
No. of Positions 2
Rated Voltage AC (V) 110
Spring Return From Not Applicable
LED Block Rated Voltage 110-130 VAC
Bezel Material Plastic
Maintained Positions B,C
Product Type Selector Switch Kit
Brand ABB
Series MPS2
Actuator Type Short Handle
Colour Clear
Contact Configuration 1NO+1NC
Cutout Size 22 mm
Function Maintained
Illumination Illuminated
LED Colour Clear
Maintained Position B, C
Material Plastic
Mode of Operation Maintained B to C
Number of Positions 2
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 110 VAC
Standards and Approvals CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Description

The Illuminated Selector Switch Kit is a clear, 110VAC device designed for engineers. It features a 2-position fixed B,C short handle and is maintained. The switch has 1 normally closed (NC) and 1 normally open (NO) contact. Made from modular plastic, this kit provides a reliable and durable solution for your electrical needs.
