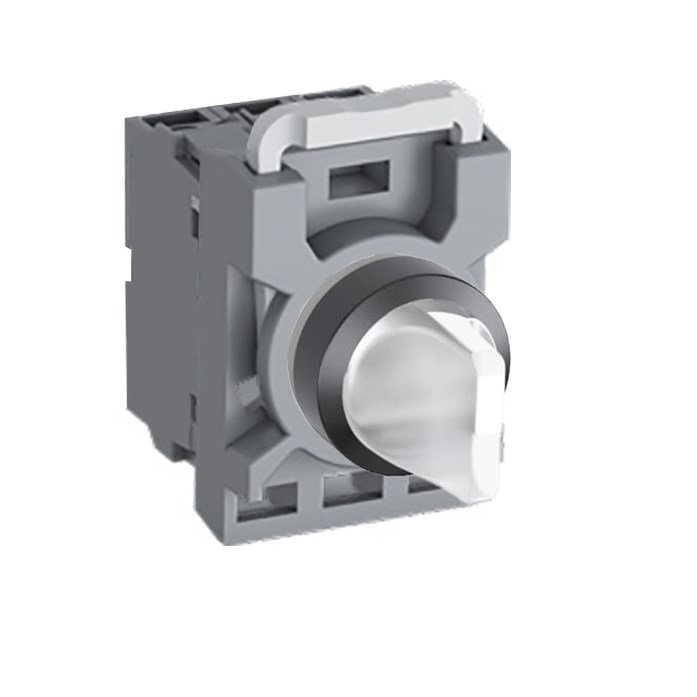

ABB MPS2ISABCC402 Selector Switch Kit Clear 110VAC 2Position 2NC Illuminated Maintained Short Handle Plastic B C

Product Code: MPS2ISABCC402

  • 110 VAC illuminated switch with clear plastic design
  • Operates in temps from -25 to 70°C
  • Meets multiple international standards and approvals
  • Short handle actuator with maintained function
  • Fits 22 mm cutout size, rated thermal current of 10 A
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 2NC
No. of Positions 2
Maintained Positions B,C
Spring Return From Not Applicable
LED Block Rated Voltage 110-130 VAC
Bezel Material Plastic
Product Type Selector Switch Kit
Brand ABB
Series MPS2
Actuator Type Short Handle
Colour Clear
Contact Configuration 2NC
Cutout Size 22 mm
Function Maintained
Illumination Illuminated
Maintained Position B, C
Material Plastic
Number of Positions 2
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 110 VAC
Standards and Approvals CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
