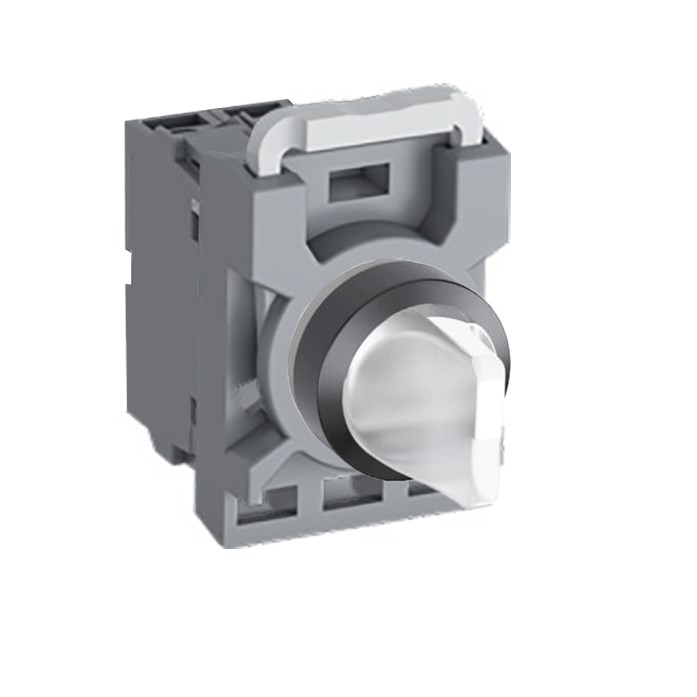

For professionals in the electrical engineering and automation sectors, selecting components that meet stringent requirements is crucial. The MPS2 series product is designed to cater to such needs with precision and reliability.
This device operates at a rated voltage of 12 VDC, ensuring compatibility with various low-voltage systems. It features an illuminated design, enhancing visibility and usability in diverse settings. Constructed from durable plastic, it offers resilience while maintaining a lightweight profile.
The operational temperature range spans from -25°C to 70°C, making it suitable for environments with fluctuating temperatures. This adaptability ensures consistent performance across different industrial applications.
Adhering to multiple standards and approvals like CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, and UL 508 underscores its compliance with international safety and quality benchmarks.
The device boasts a rated insulation voltage of up to 690 V and a rated impulse withstand voltage of 6 kV. These specifications are vital for ensuring safe operation under high-voltage conditions or transient overvoltages.
With a contact configuration of one normally closed (1NC), it provides reliable circuit control capabilities essential for many industrial applications. The actuator type is a short handle with maintained functionality—meaning once activated; it remains in position until manually reset—providing ease of use in control panels or machinery interfaces.
The device also supports a rated thermal current of up to 10 A which indicates its capability to handle moderate power loads without overheating or degrading performance over time. The cutout size required for installation is standardized at 22 mm allowing easy integration into existing setups without extensive modifications.
Finally maintained positions B and C offer flexibility in application depending on specific operational requirements whether used as part of emergency stop circuits or other control functions within automated systems this feature allows tailored use based on individual system designs.
