Product Code: MPS2ISABCC020

Illuminated selector switch for easy visibility
Operates at 12 VDC with clear plastic design
Short handle actuator with maintained function
Suitable for temps from -25 to 70°C
Meets CSA, DIN, EN, IEC, and UL standards

Specifications

Contacts	2NO
No. of Positions	2
Rated Voltage DC (V)	12
Maintained Positions	B,C
Spring Return From	Not Applicable
LED Block Rated Voltage	12 VDC
Bezel Material	Plastic
Product Type	Selector Switch Kit
Brand	ABB
Series	MPS2
Actuator Type	Short Handle
Colour	Clear
Contact Configuration	2NO
Cutout Size	22 mm
Degree of Protection	IP66 (Front), IP20 (Terminals)
Function	Maintained
Illumination	Illuminated
Lamp Type	Built-in LED
LED Colour	White
Maintained Position	B, C
Material	Plastic
Mode of Operation	Maintained B to C
Number of Positions	2
Operational Temperature	-25 to 70 deg C
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	12 VDC
Standards and Approvals	CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Description

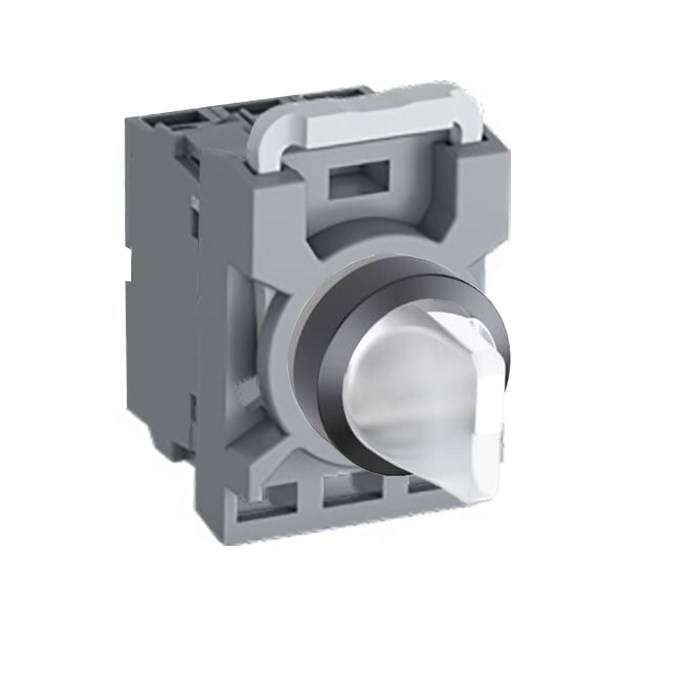

This illuminated selector switch kit features a clear design with a 2-position return from B to C. It has a short handle and is maintained with an integrated white LED. The switch operates on 12V DC power and has 2 normally open (NO) contacts. It is part of a modular plastic range and has an IP66 rating for the front and an IP20 rating for the terminals.
