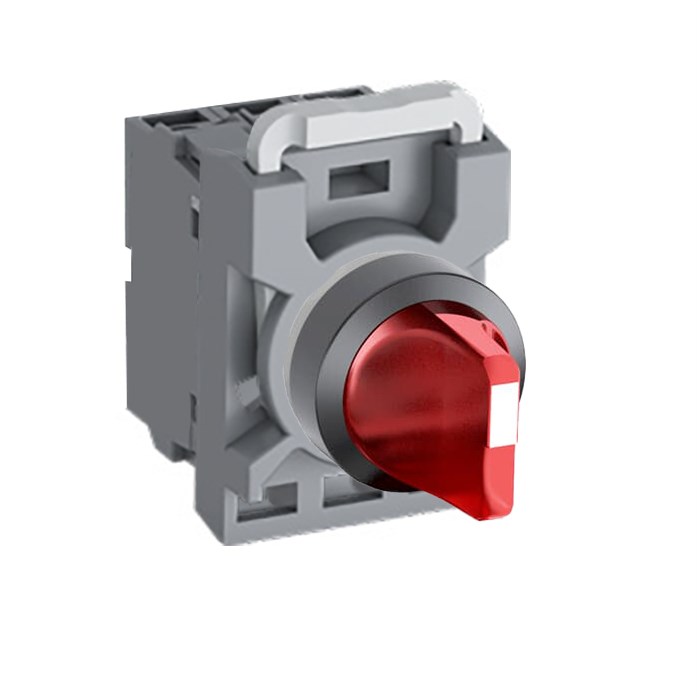

Product Code: MPS2ISABCR120

Selector switch with short handle actuator
Illuminated red design for easy visibility
Operates in -25 to 70°C temperature range
Rated voltage: 24 VAC/VDC; insulation: 690 V
Meets CSA, DIN, EN, IEC, UL standards

Specifications

Contacts	2NO
No. of Positions	2
Rated Voltage AC/DC (V)	24
Maintained Positions	B,C
Spring Return From	Not Applicable
LED Block Rated Voltage	24 VAC/DC
Bezel Material	Plastic
Product Type	Selector Switch Kit
Brand	ABB
Series	MPS2
Actuator Type	Short Handle
Colour	Red
Contact Configuration	2NO
Cutout Size	22 mm
Degree of Protection	IP66 (Front), IP20 (Terminals)
Function	Maintained
Illumination	Illuminated
Lamp Type	Built-in LED
LED Colour	Red
Maintained Position	B, C
Material	Plastic
Mode of Operation	Maintained B to C
Number of Positions	2
Operational Temperature	-25 to 70 deg C
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	24 VAC/VDC
Standards and Approvals	CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Description

This illuminated selector switch kit features a red 2-position return from B to C. It has a short handle and an integrated red LED. The switch operates on 24V AC/DC and has 2 normally open contacts (2NO). It is part of a modular plastic range and has an IP66 front rating and IP20 terminals.
