Product Code: MPS2ISOCBL020

Illuminated blue selector switch for easy visibility
Operates at 12 VDC with a 690 V insulation rating
Short handle actuator for momentary function
Dual normally open contacts (2NO) design
Fits standard 22 mm cutout size

Specifications

Contacts	2NO
No. of Positions	2
Rated Voltage DC (V)	12
Maintained Positions	Not Applicable
Spring Return From	C->B
LED Block Rated Voltage	12 VDC
Bezel Material	Plastic
Product Type	Selector Switch Kit
Brand	ABB
Series	MPS2
Actuator Type	Short Handle
Colour	Blue
Contact Configuration	2NO
Cutout Size	22 mm
Degree of Protection	IP66 (Front), IP20 (Terminals)
Function	Momentary
Illumination	Illuminated
Lamp Type	Built-in LED
LED Colour	Blue
Maintained Position	C, B
Material	Plastic
Mode of Operation	Momentary C to B
Number of Positions	2
Operational Temperature	-25 to 70 deg C
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	12 VDC
Standards and Approvals	CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Description

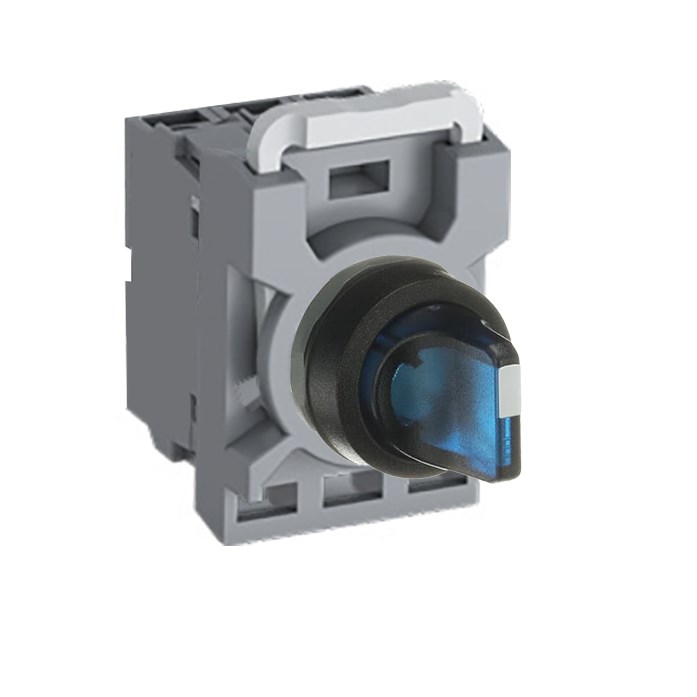

This illuminated selector switch kit features a blue colour and has a 2-position return from C to B. It is equipped with a short handle and an integrated blue LED. The switch operates on 12V DC power and has 2 normally open (NO) contacts. It belongs to a modular plastic range and has an IP66 rating for the front and an IP20 rating for the terminals.
