Product Code: MPS2ISOCBL120

Selector switch with momentary function
Operates at 24 VAC/VDC, blue illumination
Short handle actuator for easy use
Durable plastic construction, -25 to 70°C temp range
Complies with multiple international standards

Specifications

Contacts	2NO
No. of Positions	2
Rated Voltage AC/DC (V)	24
Spring Return From	C->B
LED Block Rated Voltage	24 VAC/DC
Bezel Material	Plastic
Maintained Positions	Not Applicable
Product Type	Selector Switch Kit
Brand	ABB
Series	MPS2
Actuator Type	Short Handle
Colour	Blue
Contact Configuration	2NO
Cutout Size	22 mm
Degree of Protection	IP66 (Front), IP20 (Terminals)
Function	Momentary
Illumination	Illuminated
Lamp Type	Built-in LED
LED Colour	Blue
Maintained Position	C, B
Material	Plastic
Mode of Operation	Momentary C to B
Number of Positions	2
Operational Temperature	-25 to 70 deg C
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	24 VAC/VDC
Standards and Approvals	CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Description

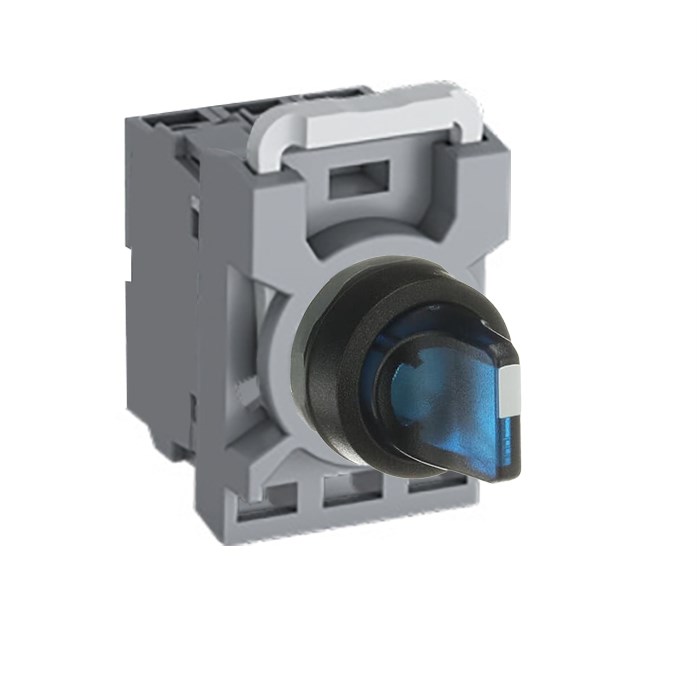

The Illuminated Selector Switch Kit is a blue 2-position switch that returns from position C to B. It features a short handle and an integrated blue LED for momentary illumination. The switch operates on 24V AC/DC power and has 2 normally open (NO) contacts. This kit is part of a modular plastic range and has an IP66 rating for the front and an IP20 rating for the terminals.
